PGYTECH U-Bolt Mount

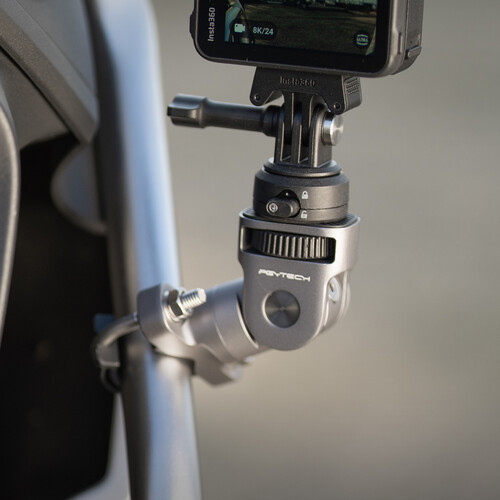

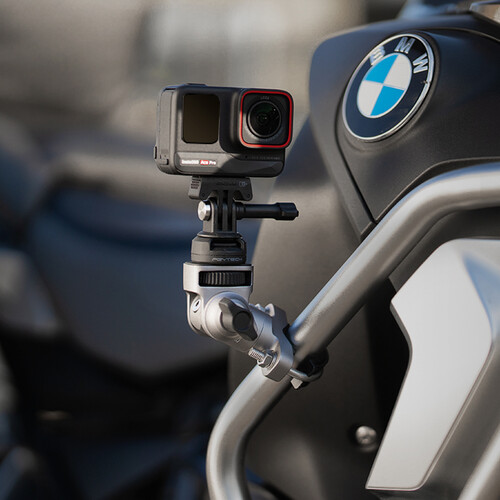

Securely attach your action camera to the handlebars of your motorcycle or bicycle to facilitate dynamic shooting in motion with this U-Bolt Mount from PGYTECH. With its patented rosette structure, this mount offers 360° rotation and 180° tilt for flexible angles and is easily secured by a single wing nut.

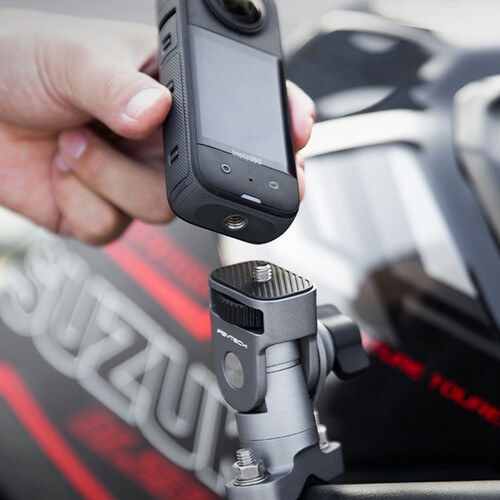

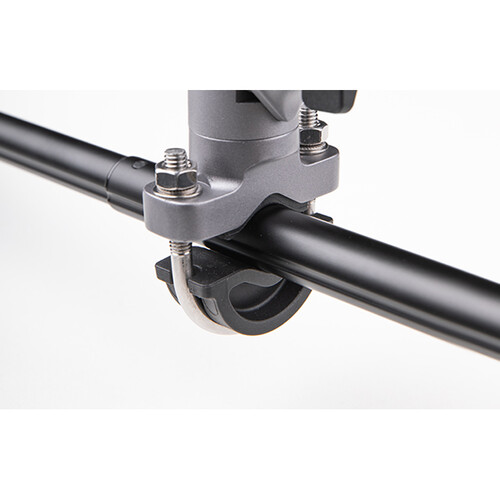

Constructed from high-quality aluminum alloy with a refined finish, the mount includes large and small cushion blocks for tubes measuring from 0.5 to 1.3" in diameter. The 1/4"-20 interface attaches seamlessly to action cameras, phone mounts, and extension poles. Included are a CapLock quick-release clamp and an action camera adapter to enhance the efficiency of the assembly and disassembly process.

Features at a Glance

Patented rosette structure for enhanced safety and stability

Effortless angle adjustment, locked with a single wing nut

Bidirectional angle flexibility for unrestricted perspectives

Multiple interfaces for wide adaptability

Light and portable

CapLock patented system for efficient assembly and disassembly

High-strength aluminum alloy for enhanced durability

Important Safety Tips

Safe load capacity: 12.3 oz

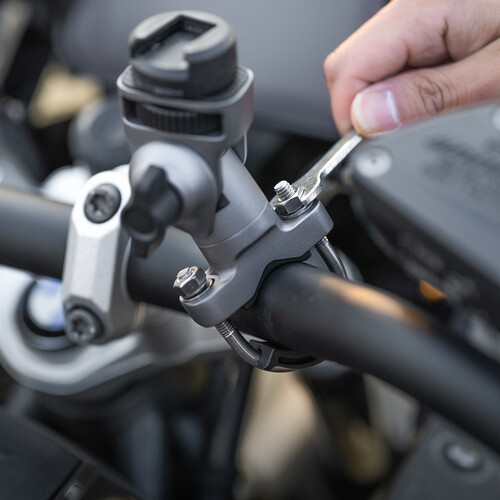

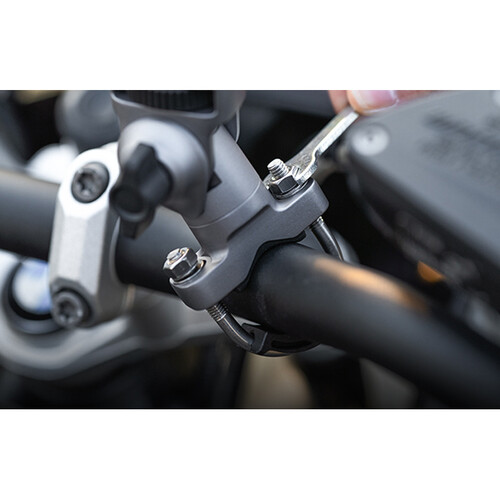

Use the included tightening wrench to ensure a secure lock

If mounting an action camera directly on the U-Bolt mount, do not exceed speeds of 50 mph while road cycling and do not exceed speeds of 25 mph while off-road cycling

• PGYTECH P-GM-172 Specs
• Clamp Type
• Pipe
• Jaw Shape
• Round
• Load Capacity
• 12.3 oz / 350 g
• Color
• Gray
• Mounting
• Mounting
• Camera Mount: 1x 1/4"-20 Male Screw
• Clamping Range
• 0.5 1.3" / 12.7 to 33 mm
• Environmental
• Certifications
• RoHS
• Operating Temperature
• 14 to 104°F / -10 to 40°C
• General
• Materials
• Aluminum Alloy, Rubber
• Dimensions
• 4.2 x 2.2 x 2.1" / 106 x 57 x 53 mm
• Weight
• 7.3 oz / 208 g
