The fluid video head offers smooth pan and tilt movements due to its variable fluid drag system. It's designed for quick setup with a sliding plate and supports up to 7kg, ideal for modern camcorders and HDSLR cameras with accessories. The flat base allows versatile support combinations, while 3/8” easy link connectors enable attachment of accessories like external monitors. Its robust aluminium build and fixed counterbalance system enhance stability and ease of use.

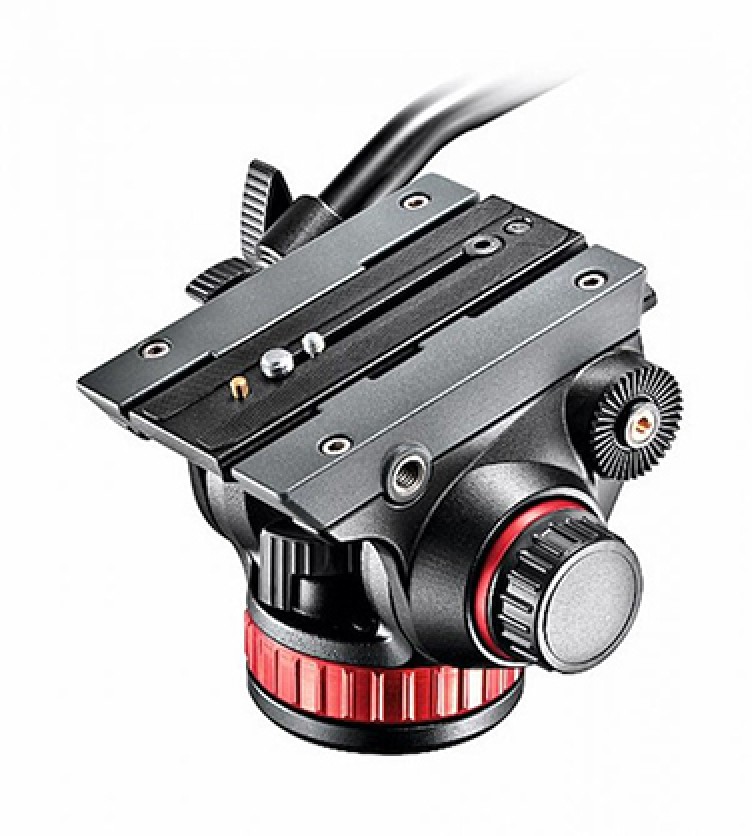

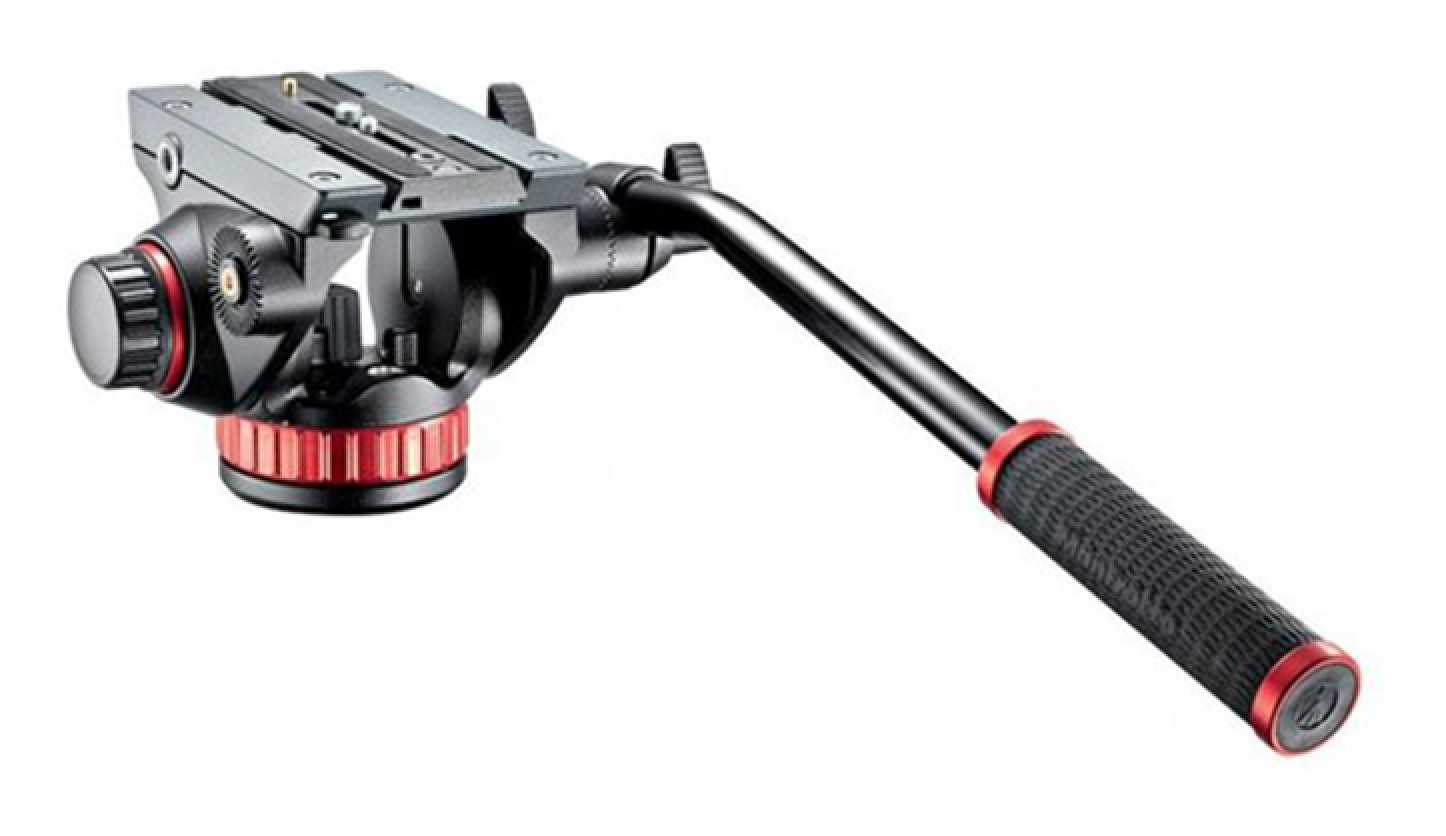

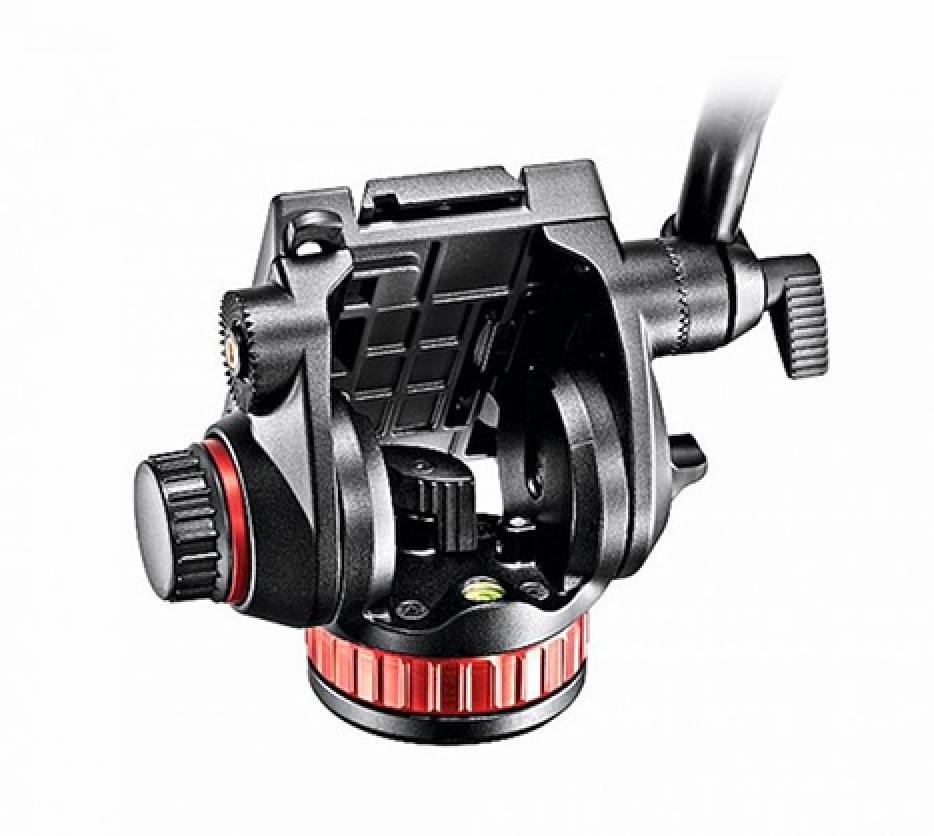

The Manfrotto 502 Fluid Video Head offers a variable fluid drag system to ensure smooth pan and tilt movements.
A sliding plate allows for the fastest camera connection, while a flat base supports multiple combinations.
The 3/8” easy link connectors enable the attachment of external monitors and other accessories.
This video head supports up to 7 kg, making it ideal for camcorders and HDSLR cameras with external accessories.
| Weight | 1.691 kg |
|---|---|
| Safety Payload UNI/PdR 105:2021 | 10 kg |
| Counterbalance System | Fixed |
| Counterbalance Weight | 4 kg |
| Base Diameter | 75 mm |
| Material | Aluminium |
| Bubble Spirit Level (No.) | 1 |
| Center Of Gravity | 55 mm |
| Safety Payload Weight | 7 kg |
| Powered By (Batteries) | 0 |
| Certifications | None |
| Top Attachment | 1/4" screw, 3/8" screw |
| Colour | Black |
| Easy Link | Yes |
| Front Tilt | -80° / +90° |
| Ball Flat | Flat |
| Head Type | Video/Fluid Head |
| Maximum Working Temperature | 60 °C |
| Minimum Working Temperature | -20 °C |
| Pan Bar Included | Yes |
| Pan Drag | continuously adjustable from 0 to max level |
| Panoramic Rotation | 360 ° |
| Plate Type | 504PLONG |
| Quick Release | Yes |
| Tilt Drag | continuously adjustable from 0 to max level |
| Working Height | 13 cm |
