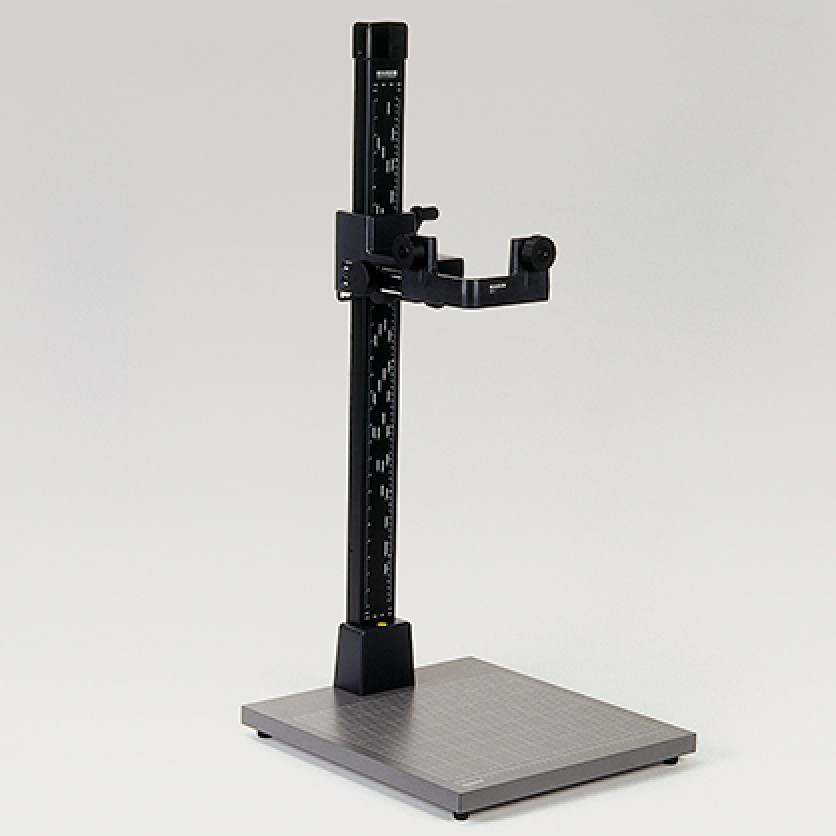

Kaiser 5511 RS 1 Copy Stand with RT 1 copy and titling arm

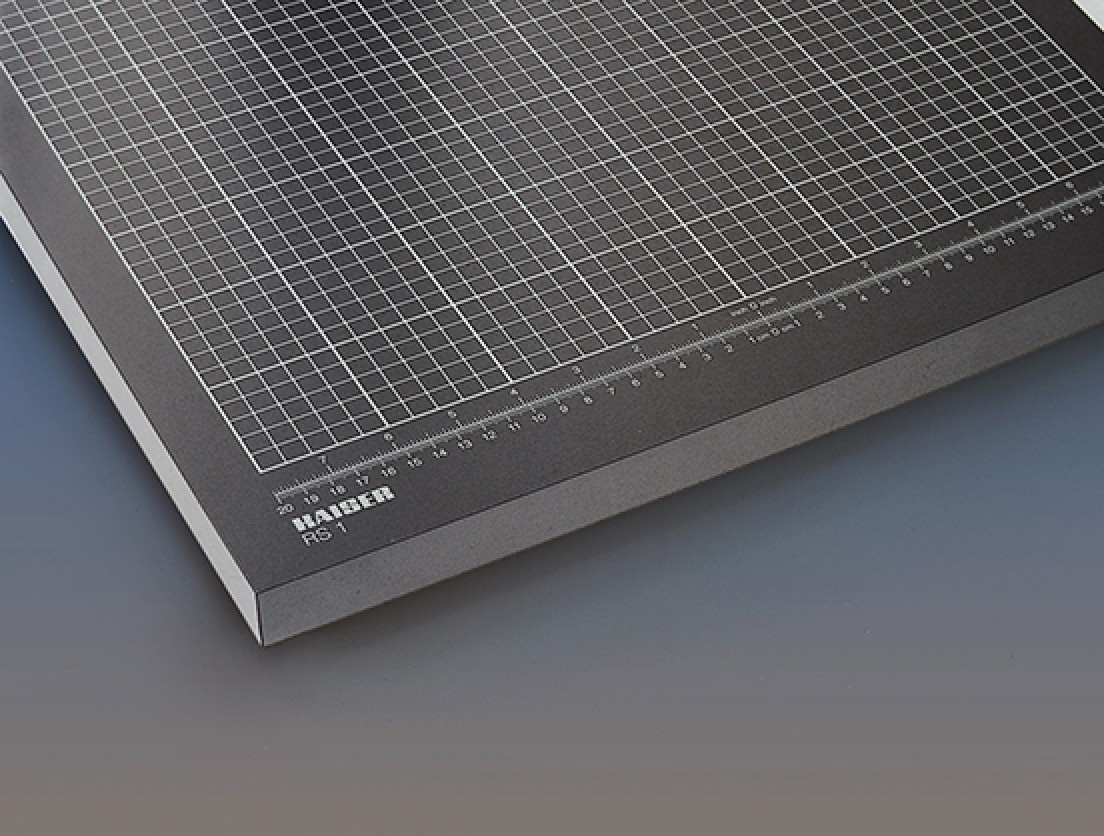

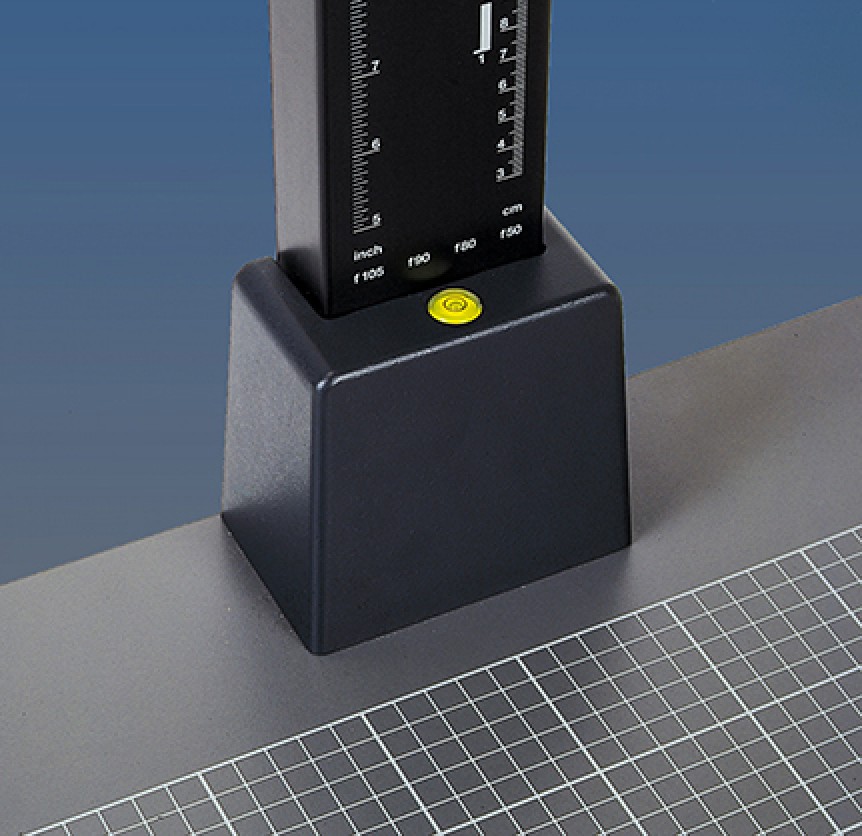

Non-reflecting matt gray base board with printed fine grid. Feet adjustable in height. Spirit level in column base. Extra-wide and extremely vibration-resistant column of dull black anodized aluminium tubing with cm and inch scales. Hand crank-operated height adjustment by friction drive on plastic bearings. Weight compensation by roll-off spring mechanism. Column can be mounted rotated 180°.

Base board: approx. 450 x 500 x 28 mm (17.7 x 19.7 x 1.1 in.)

Column height: approx. 1000 mm (39.4 in.)

5511: RS 1 Camera Stand

with RT 1 copy and titling arm with two camera mounting points for portrait and landscape formats.

Mounting the camera on the inside of the camera carrier for landscape format produces images which are not upside-down. This is very convenient for comic, animation and stop-motion films.

A parallel guide makes the camera platform longitudinally adjustable, and it can be locked in any position. The entire copy and titling arm is tiltable to allow for reproduction of vertical subjects.

With interchangeable ¼”/1/8” connecting thread.

Maximum load: 3 kg.
