This compact and durable mirrorless camera offers impressive image quality with a 20.4MP sensor and advanced image stabilization, enabling high-speed shooting and 4K video recording, while its rugged design and wireless connectivity make it ideal for capturing adventures in any environment.

Features

The OM SYSTEM OM-5 offers a range of benefits for photographers and videographers.

High-Performance Imaging

With a 20.4MP Live MOS sensor and TruePic IX image processor, this camera delivers fast shooting, a broad ISO range up to 25600, and 4K video capabilities.

Advanced Autofocus

The 121-point all cross-type phase-detection autofocus ensures quick and precise focusing, enhancing subject tracking in various lighting conditions.

Stabilisation and Versatile Shooting

Its 5-axis sensor-shift image stabilization compensates for up to 6.5 stops of camera shake, ideal for handheld shooting, while creative modes like Live ND, focus stacking, and High-Res Shot expand artistic possibilities.

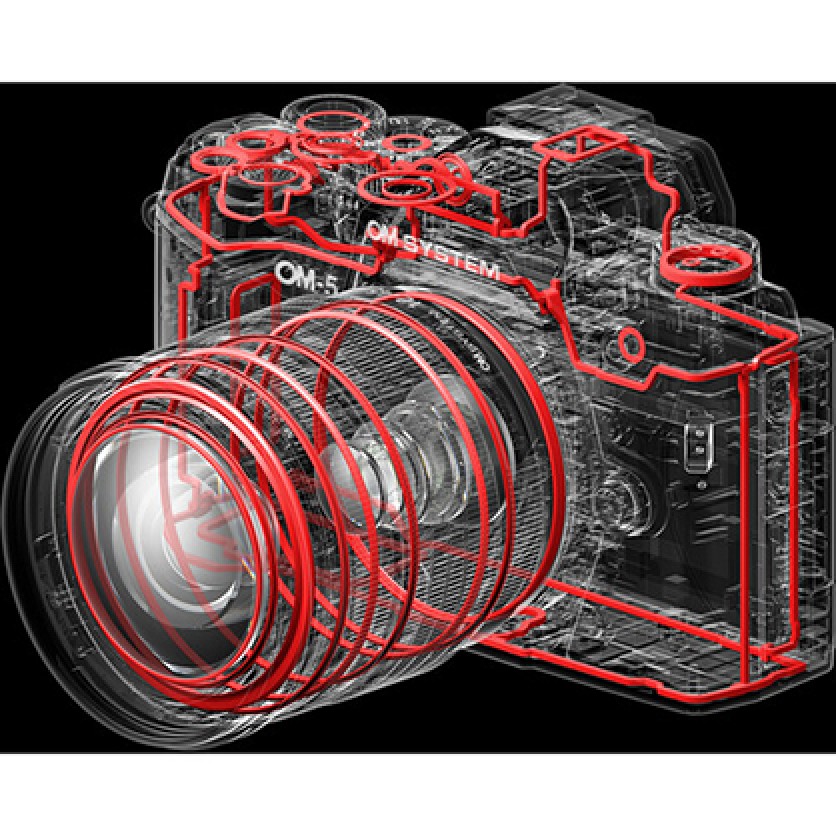

Rugged Design and Connectivity

Robustly built for challenging environments, it features splashproof, dustproof, and freezeproof construction, complemented by Wi-Fi and Bluetooth for seamless connectivity.

Specifications

Imaging
Lens Mount	Micro Four Thirds
Sensor Resolution	Actual: 21.8 Megapixel Effective: 20.4 Megapixel
Sensor Type	17.4 x 13 mm (Four Thirds) MOS
Crop Factor	2x
Image Stabilization	Sensor-Shift, 5-Axis
Built-In ND Filter	4 Stop Electronic ND Filter
Capture Type	Stills & Video

Exposure Control

Shutter Type	Electronic Shutter, Mechanical Focal Plane Shutter
Shutter Speed	Mechanical Shutter: 1/8000 to 60 Seconds Electronic Front Curtain Shutter: 1/320 to 60 Seconds Electronic Shutter: 1/32000 to 60 Seconds
Bulb/Time Mode	Bulb Mode, Time Mode
ISO Sensitivity	200 to 25,600 (Extended: 64 to 25,600)
Metering Method	Center-Weighted Average, Multi-Zone, Spot
Exposure Modes	Aperture Priority, Auto, Manual, Program, Shutter Priority
Exposure Compensation	-5 to +5 EV (1/3, 1/2, 1 EV Steps)
Metering Range	-2 to 20 EV
White Balance	Presets: Auto, Color Temperature, Custom
Continuous Shooting	Up to 10 fps at 20.4 MP for up to 149 Frames (Raw) / Unlimited Frames (JPEG) Up to 6 fps at 20.4 MP for Unlimited Frames (Raw) / Unlimited Frames (JPEG) Up to 30 fps at 20.4 MP for up to 18 Frames (Raw) / 20 Frames (JPEG) Up to 10 fps at 20.4 MP for up to 138 Frames (Raw) / Unlimited Frames (JPEG)
Interval Recording	Yes

Still Image Capture

Image Sizes	4:3 JPEG / Raw: 20.4 MP (5184 x 3888) 4:3 JPEG: 20.4 MP (1024 x 768) 4:3 JPEG: 50 MP (8160 x 6120)
Aspect Ratio	1:1, 3:2, 4:3, 16:9
Image File Format	JPEG, Raw
Bit Depth	12-Bit

Video Capture

Internal Recording Modes	H.264/MOV/MPEG-4 AVC: DCI 4K (4096 x 2160) at 24.00 fps [237 Mb/s] UHD 4K (3840 x 2160) at 24.00/25/29.97 fps [102 Mb/s] 1920 x 1080 at 24.00/25/29.97 fps [18 to 202 Mb/s] 1280 x 720 at 24.00/25/29.97/50/59.94 fps [102 Mb/s] 1920 x 1080 at 119.88 fps
Recording Limit	None
Broadcast Output	NTSC/PAL
Built-In Microphone Type	Stereo

Interface

Media/Memory Card Slot	Single Slot: SD/SDHC (UHS-II)
Video I/O	1 x Micro-HDMI Output
Audio I/O	1 x 1/8" / 3.5 mm TRS Stereo Microphone Input
Power I/O	1 x Micro-USB Input/Output
Other I/O	1 x 2.5 mm Sub-Mini Control
Wireless	Wi-Fi (802.11b/g), Bluetooth
Global Positioning (GPS, GLONASS, etc.)	None

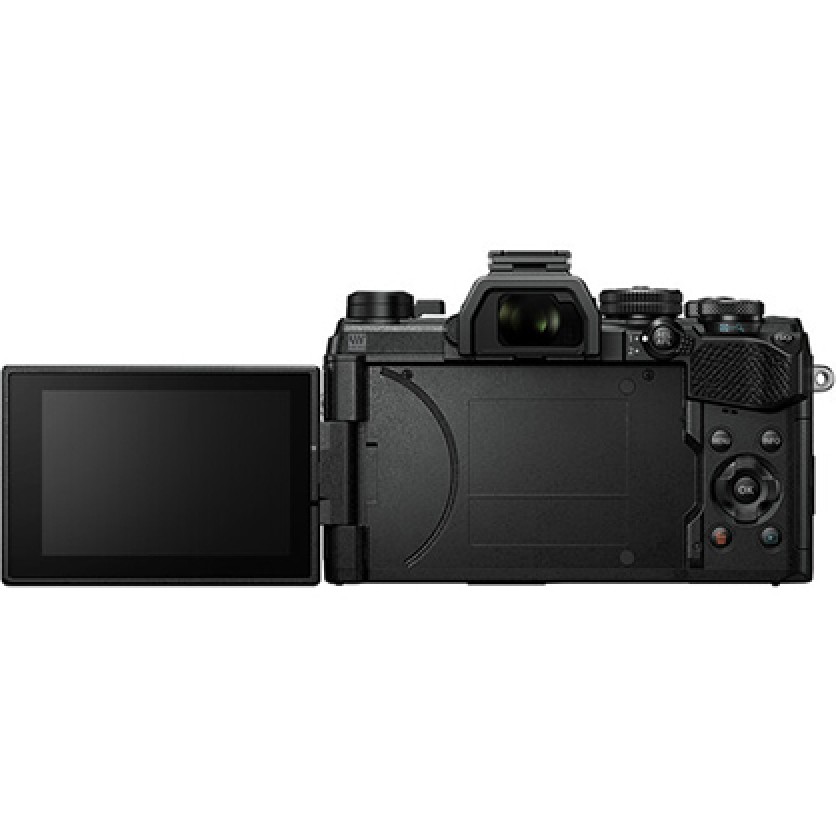

Monitor

Size	3"
Resolution	1,040,000 Dot
Display Type	Articulating Touchscreen LCD

Viewfinder

Type	Built-In Electronic (OLED)
Resolution	2,360,000 Dot
Eye Point	27 mm
Coverage	100%
Diopter Adjustment	-4 to +2

Focus

Focus Type	Auto and Manual Focus
Focus Mode	Continuous-Servo AF, Manual Focus, Single-Servo AF
Autofocus Points	Contrast Detection, Phase Detection: 121 (121 Cross-Type)

Flash

Built-In Flash	No
Flash Modes	Fill Flash, Manual, Off, Red-Eye Reduction, Second-Curtain Sync, Slow Sync, Slow Sync/Red-Eye Reduction
Maximum Sync Speed	1/250 Second
Flash Compensation	-3 to +3 EV (1/3, 1 EV Steps)
Dedicated Flash System	TTL
External Flash Connection	Hot Shoe

Environmental

Operating Temperature	14 to 104°F / -10 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	30 to 90%
Storage Humidity	10 to 90%

General

Battery Type	1 x BLS-50 Rechargeable Lithium-Ion (Approx. 310 Shots)
Tripod Mounting Thread	1 x 1/4"-20 Female (Bottom)
Dimensions (W x H x D)	4.9 x 3.4 x 2" / 125.3 x 85.2 x 49.7 mm
Weight	12.9 oz / 366 g (Body Only) 14.6 oz / 414 g (With Battery)

OM SYSTEM OM-5 Body only

4545350053949
