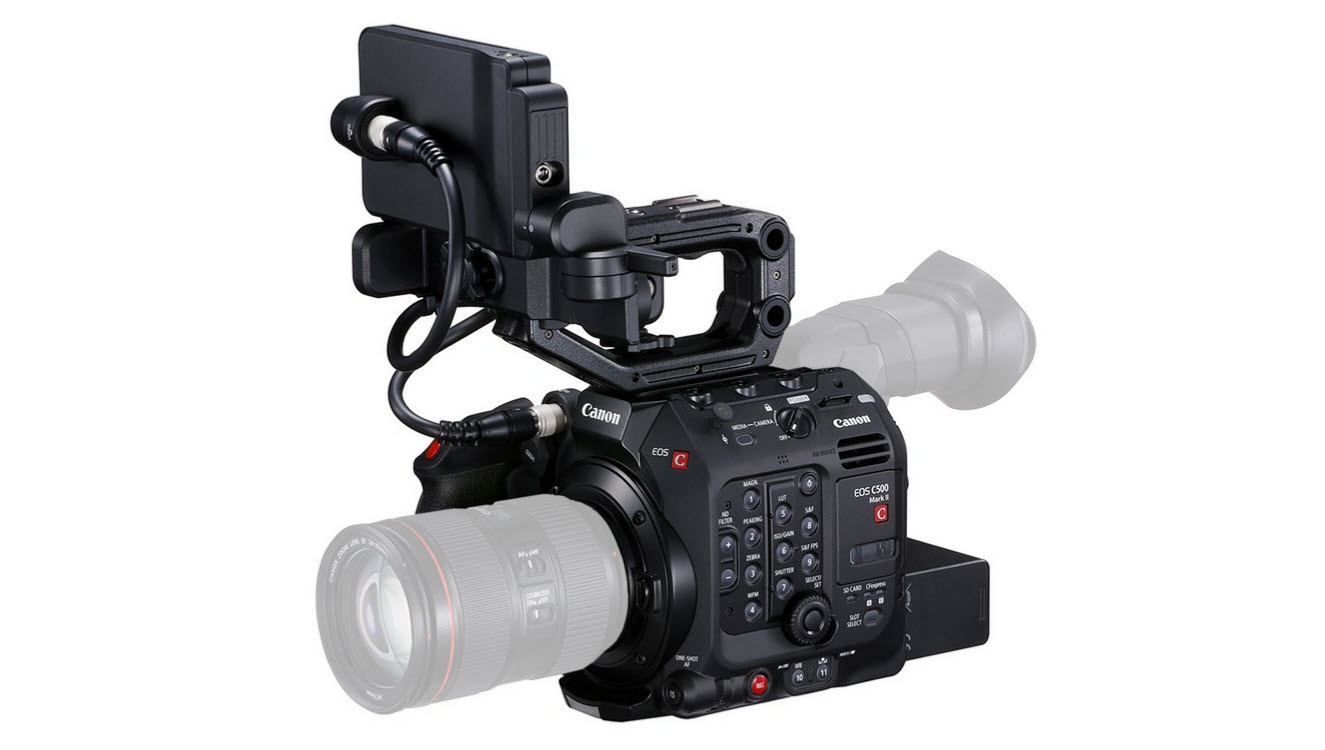

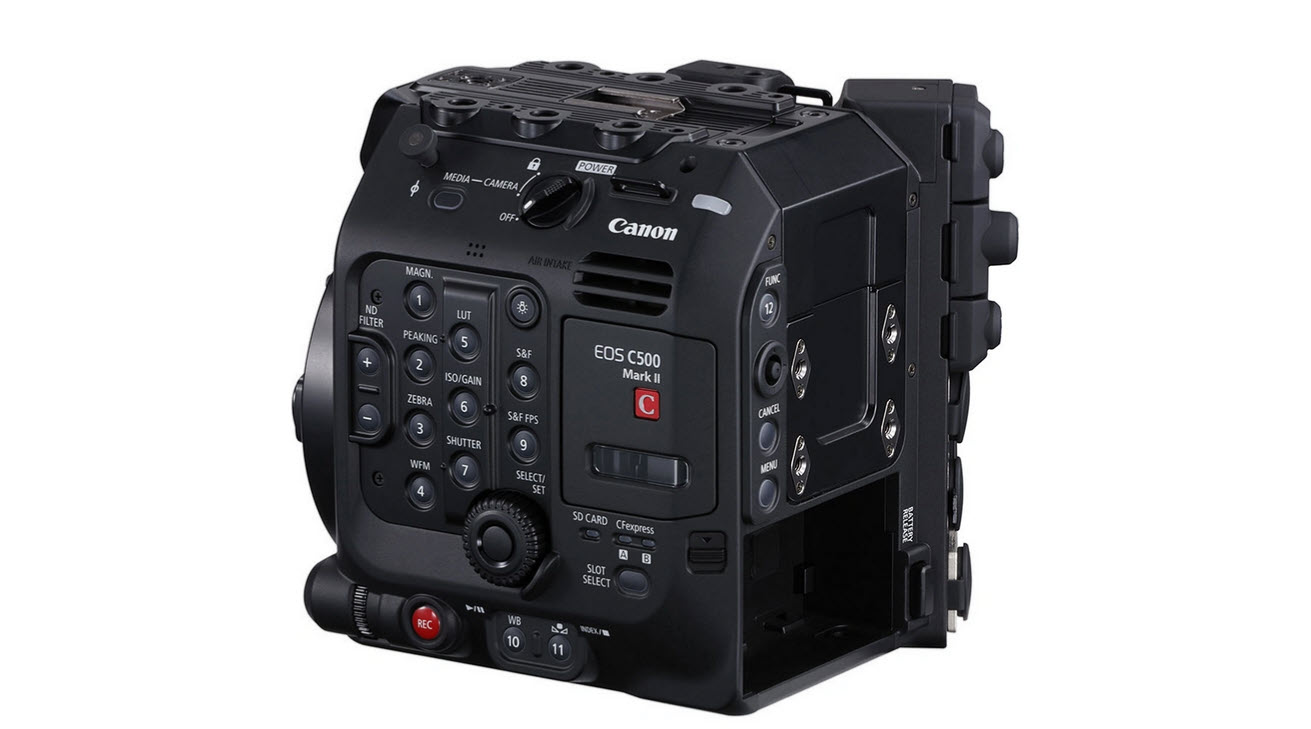

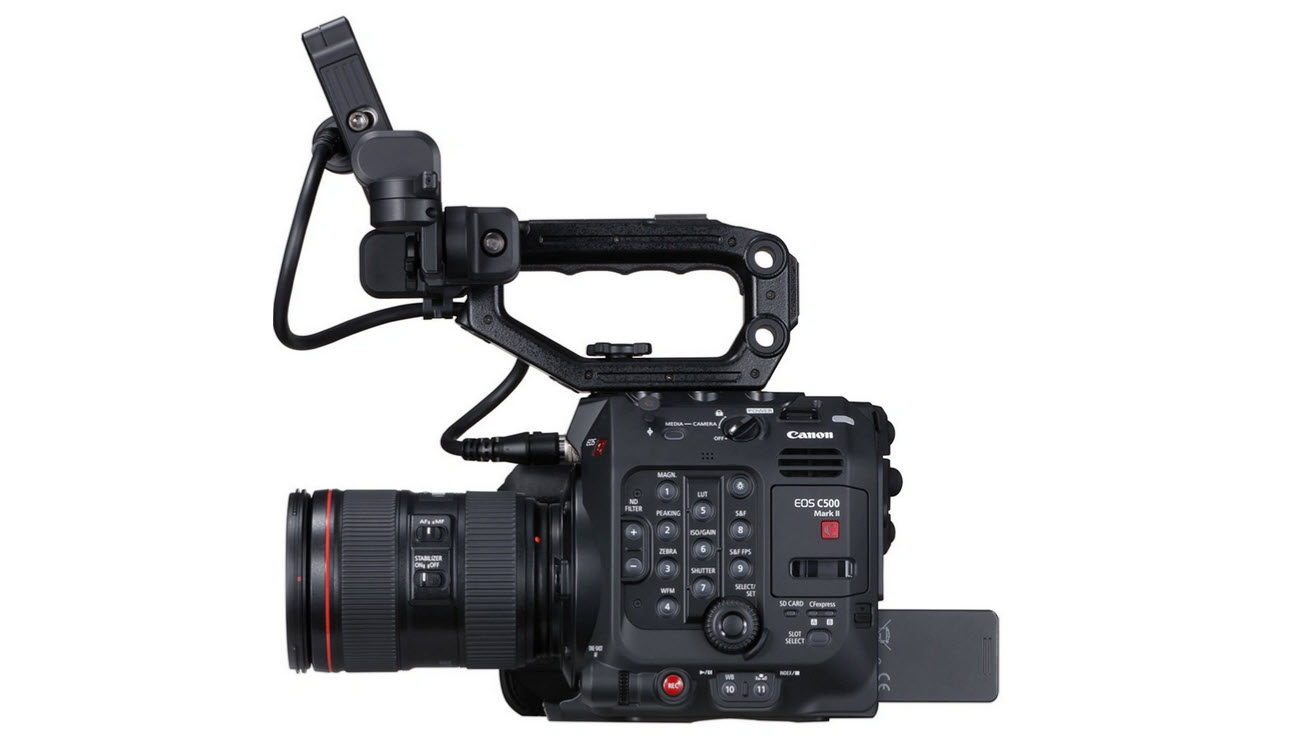

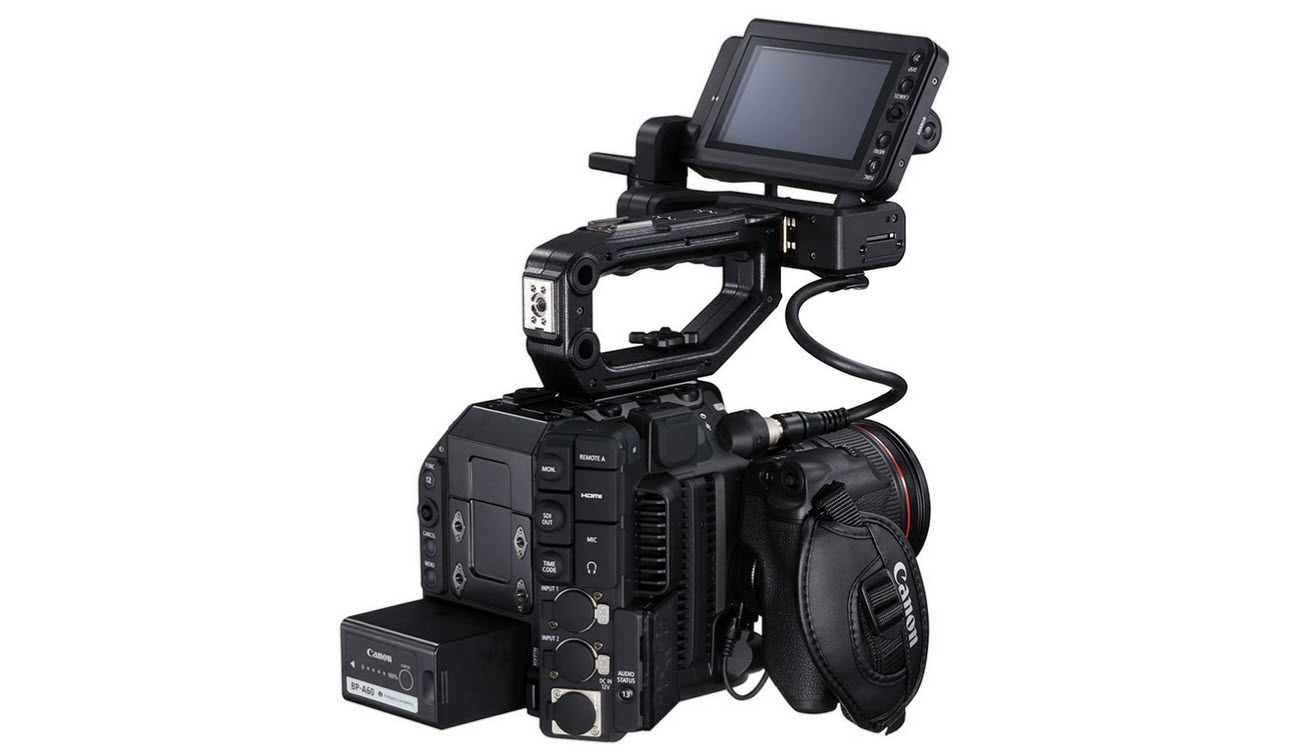

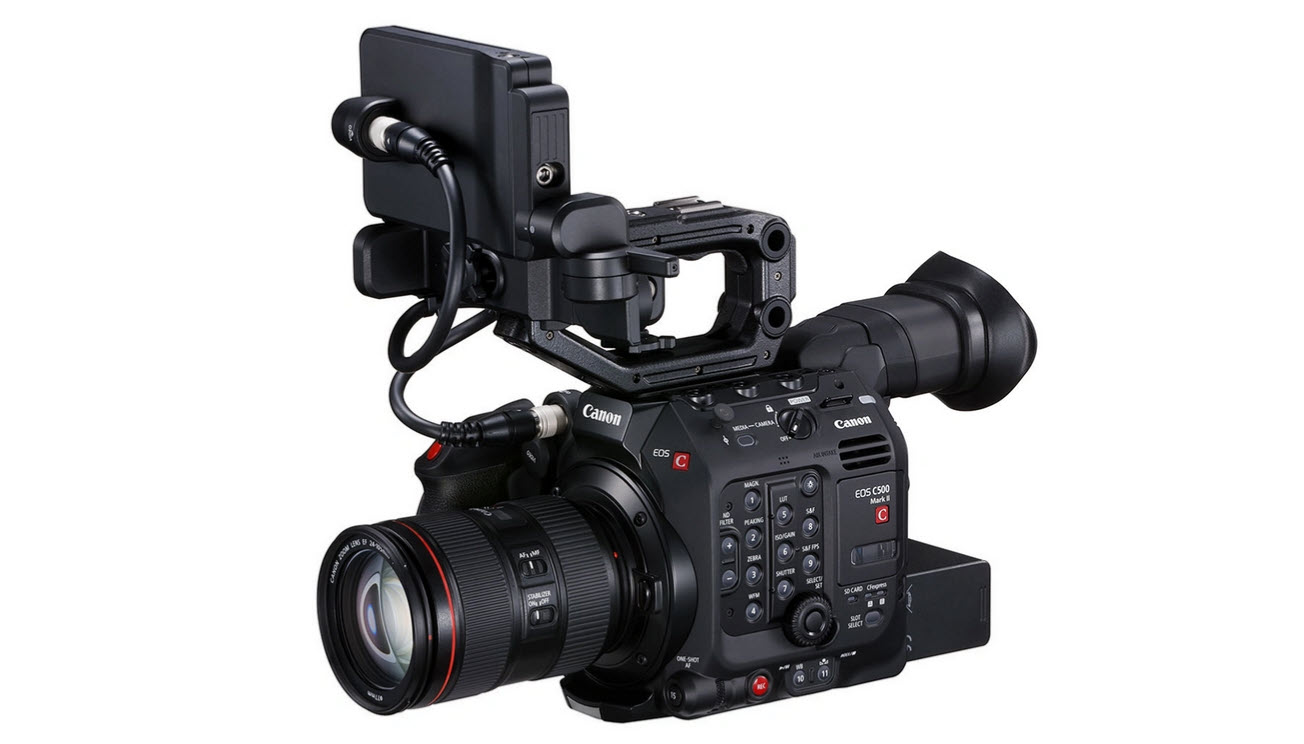

The Canon EOS C500 Mark II offers exceptional image quality with its 5.9K full-frame CMOS sensor, providing over 15 stops of dynamic range for stunning detail. Its interchangeable lens mount system supports a wide range of lenses, enhancing versatility for any shooting scenario. The Dual Pixel autofocus ensures precise focus, while the DIG!C DV 7 processor enables high frame rate recording and advanced image processing. With robust audio capabilities and flexible recording formats, this camera is ideal for professional cinema production.
Features
The Canon EOS C500 Mark II 5.9K Full-Frame Camera Body with 512GB Sandisk CFExpress offers a range of impressive features and benefits for filmmakers and photographers alike.
Exceptional Image Quality
The full-frame CMOS sensor with 18.69MP resolution ensures stunning 5.9K output and versatile cropping for Super 35 and Super 16 frame sizes.
Over 15 stops of dynamic range and a color gamut exceeding BT-2020 specifications deliver rich, high-quality images.
Support for DCI-4K, UHD, and Anamorphic Widescreen formats expands creative possibilities.
Advanced Recording Capabilities
Internal recording options include Canon Cinema RAW Light codec in 12- or 10-bit and XF-AVC codec in 10-bit, providing flexibility in post-production.

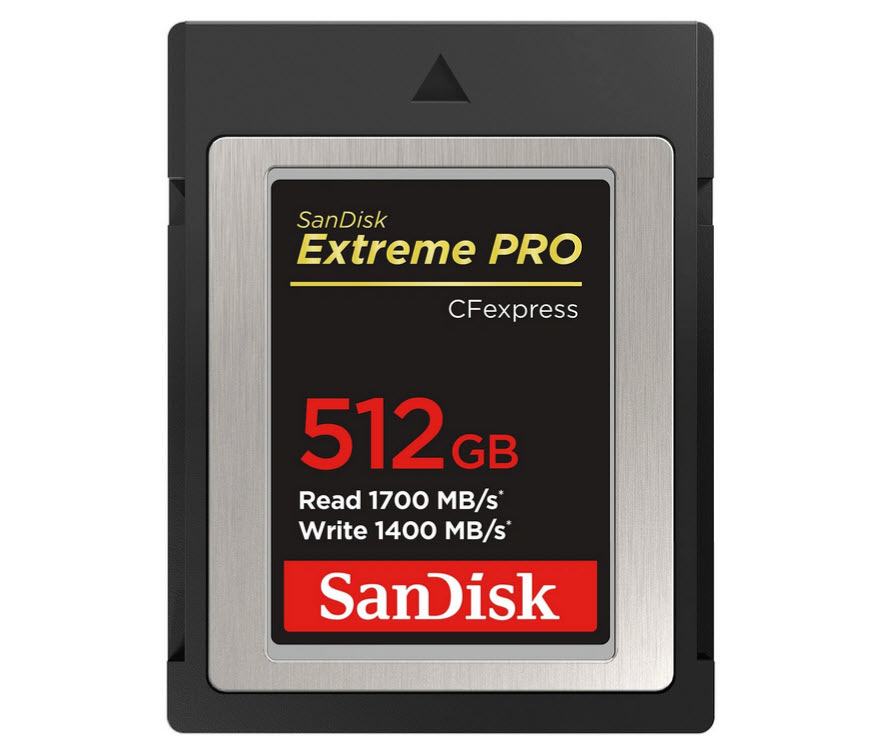

Dual CFexpress card slots and an additional SD card slot for 8-bit proxy recording enhance storage options.
Supports various gamma settings, including Canon Log 2 and Log 3, for greater dynamic range and flexibility.
Flexible Lens and Mount Options
Interchangeable lens mount system with EF mount and optional Cinema Locking EF or PL mount for a vast range of lens compatibility.
Field-swappable mounts and available B4 lens adapter for ENG-style lenses maximize versatility.
Innovative Auto Focus and Stabilization
Dual Pixel CMOS AF with Touch AF and Face Detection AF ensures precise focus tracking and control.
Five-axis electronic image stabilization provides steady shots even with anamorphic lenses.
Comprehensive Audio and Connectivity
Four channels of 24-bit, 48 kHz linear PCM audio recording with two XLR inputs and optional expansion for additional audio inputs.
Log and LUT support allows for higher dynamic range and more flexible grading options.
Expansion options for multicamera production and streaming with additional ports and power options.
Customizable User Experience
Assignable buttons, custom picture settings, and My Menu settings offer a personalized shooting experience.
Control via Browser Remote and optional expansion modules enhance operational flexibility.
Wireless streaming and optional EVF expand usability in various shooting environments.
The Canon EOS C500 Mark II combines cutting-edge technology with user-friendly features, making it an ideal choice for professional filmmakers seeking high-quality video production.
Specifications
Image Sensor
Sensor Size
Full-Frame
Sensor Type
CMOS
Sensor Resolution
Actual: 20.8 Megapixel (6062 x 3432) Effective: 18.69 Megapixel (5952 x 3140)
Sensor Windowing
(5952 x 3140) in 17:9 When Recording in Raw (4096 x 2160) in 17:9 When Recording in Raw (2048 x 1080) in 17:9 When Recording in Raw
Dual Slot: CFexpress Type B Single Slot: SD/SDHC/SDXC (UHS-II)
Variable Frame Rates
Up to 120 fps
Internal Recording
Raw Recording
Cinema RAW Light 10-Bit, 12-Bit: 5952 x 3140 at 23.98/24/25/29.97/50/59.94 fps 4096 x 2160 at 23.98/24/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24/25/29.97/50/59.94 fps
Recording Modes
XF-AVC 4:2:2 10-Bit: 4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps (160 to 810 Mb/s) 3840 x 2160p at 23.98/24/25/29.97/50/59.94 fps (160 to 810 Mb/s) 2048 x 1080p up to 120 fps (160 to 810 Mb/s) 1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps (160 to 810 Mb/s) XF-AVC 4:2:0 8-Bit: 2048 x 1080p at 23.98/24/25/29.97/50/59.94 fps (24 to 35 Mb/s)
Gamma Curve
Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, Normal 1, Wide DR
Audio Recording
4-Channel 24-Bit 48 kHz LPCM Audio
Interfaces
Video Connectors
1 x BNC (12G-SDI) Output 1 x BNC (3G-SDI) Monitor Output 1 x HDMI Output
Audio Connectors
1 x 1/8" / 3.5 mm Stereo Mic Level Input 2 x 3-Pin XLR Mic/Line Level Input 1 x 1/8" / 3.5 mm Stereo Mic Level Input 1 x 1/8" / 3.5 mm Stereo Headphone Output
