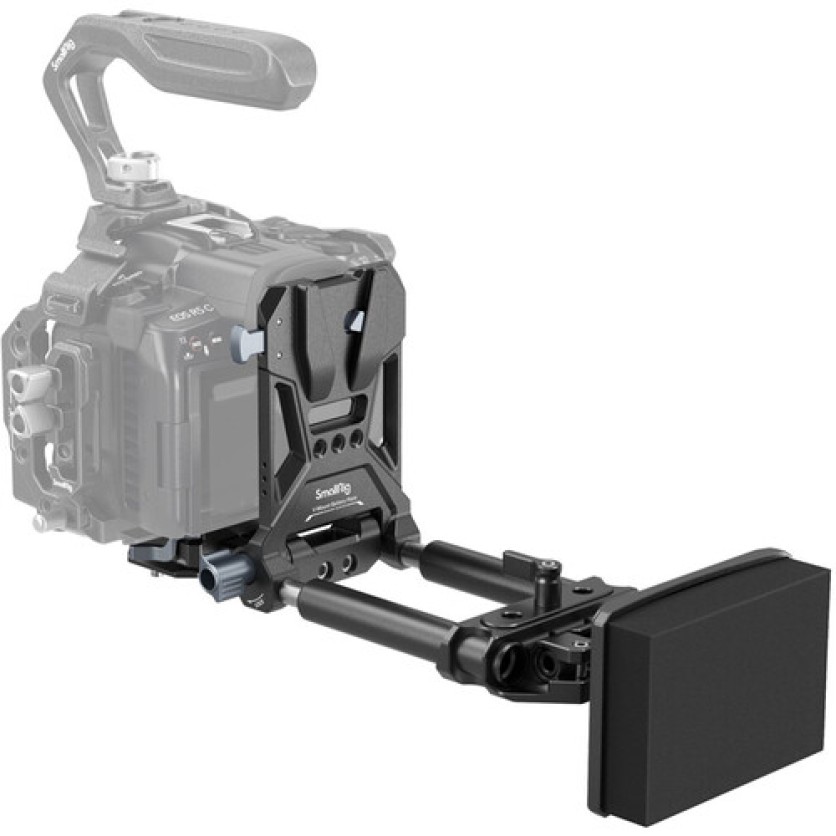

Enhance your camera rig with a versatile power solution through this advanced mounting system. Easily add a V-mount battery or other power options using the modular design, which features quick release compatibility with DJI RS gimbals. The system's adjustable baseplate and rotating battery plate offer flexibility and unobstructed views, while the ergonomic chest pad reduces fatigue during handheld shots. Ideal for various mirrorless and DSLR cameras, it ensures stability and extended shooting time.

Features

Versatile Power Solutions

Add a V-mount battery or other power solutions to your camera rig with ease. The system includes a V-mount battery plate and multiple 1/4"-20 threads for versatile accessory mounting.

Quick and Easy Mounting

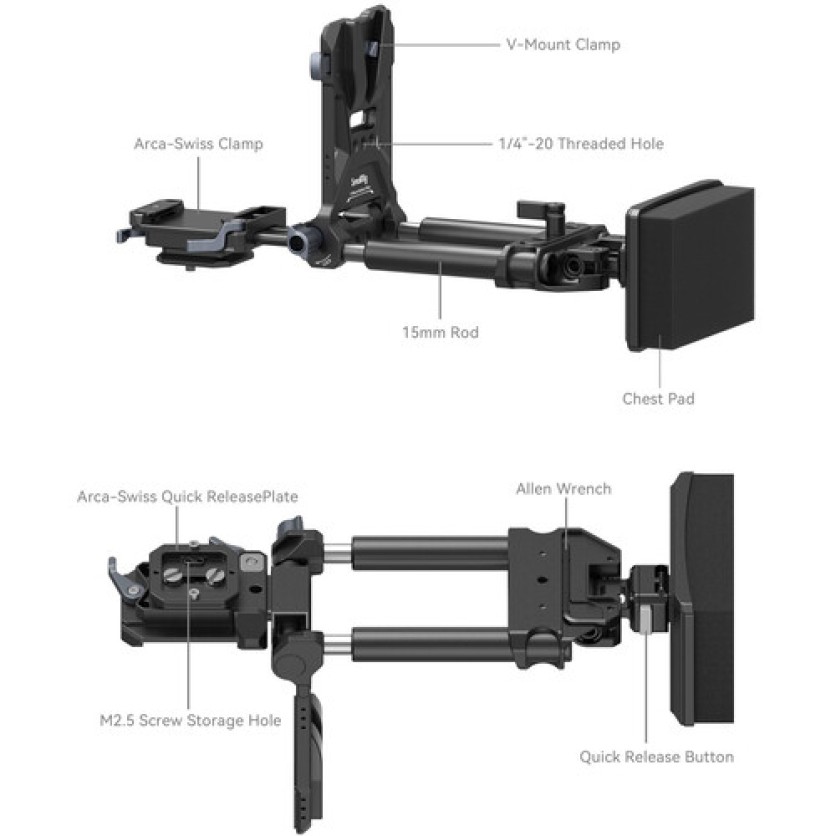

The Arca-type quick release plate allows for swift camera mounting and is compatible with DJI RS-series gimbals. The modular design includes two 15mm rods and a V-lock accessory wedge for quick attachment.

Enhanced Camera Compatibility

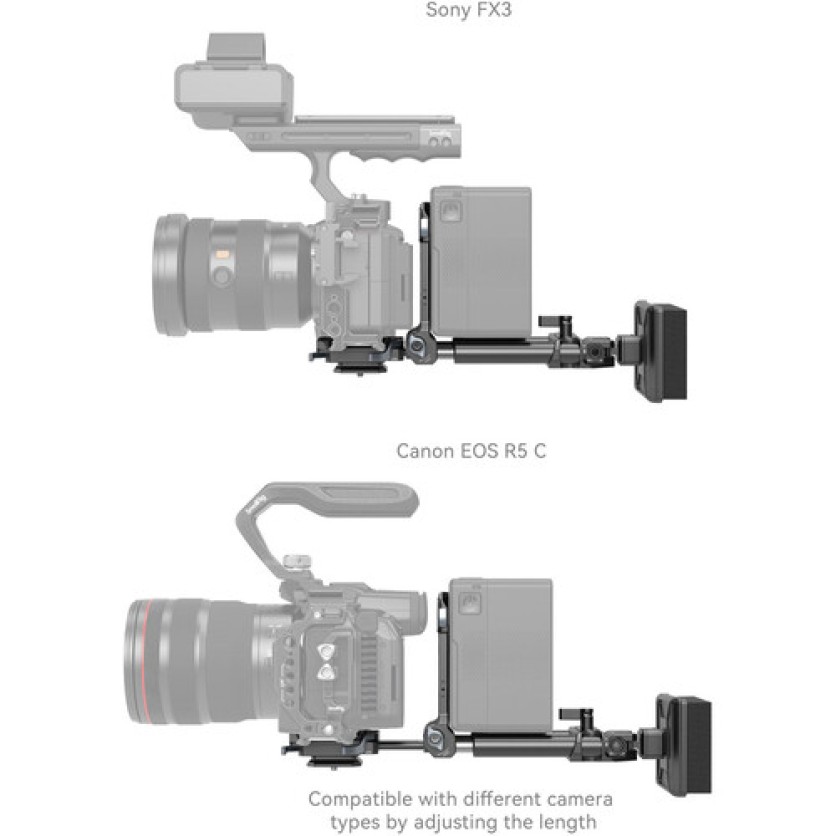

Compatible with a wide range of mirrorless and DSLR cameras, including popular models from Sony, Canon, and Panasonic, as well as DJI RS-series gimbals.

Improved Handling and Stability

The adjustable baseplate extends to fit deeper cameras, while the shortened rods and larger chest pad offer increased stability and reduced fatigue during handheld shooting.

Optimised Viewing Experience

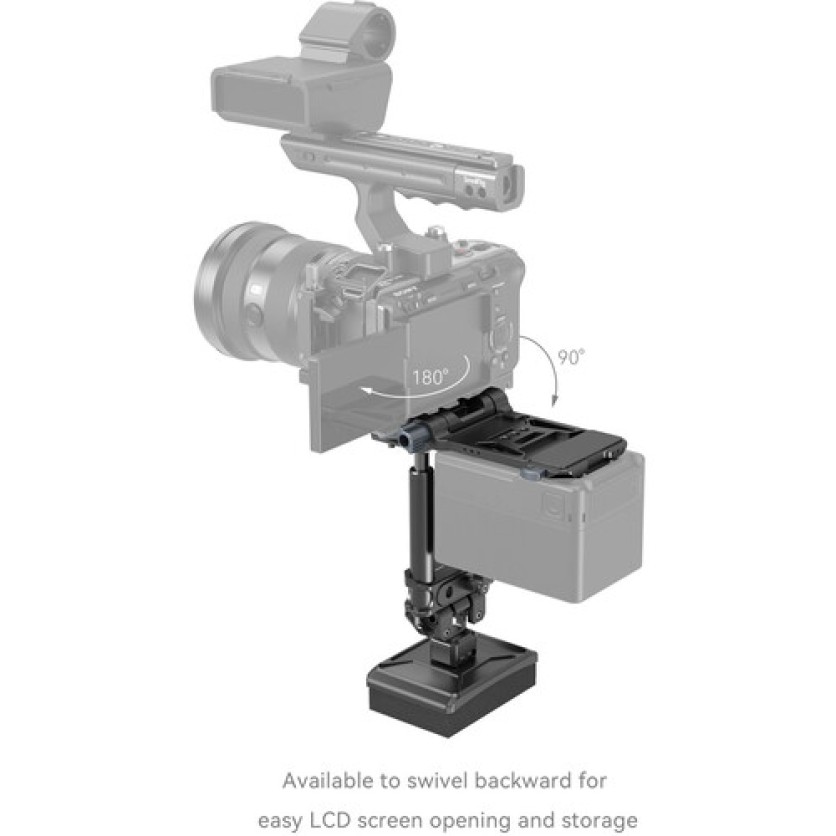

The dampened battery plate can rotate 90° to provide an unobstructed view, accommodating articulating screens and ensuring a clear viewfinder.

Specifications

General
Compatibility	Sony a7C / a7S III / a7 IV / a7R V / FX3 / FX30 Canon EOS R5C / EOS R5 / EOS R6 / EOS R6 Mark II / EOS R7 / EOS R10 / EOS R / EOS RP Panasonic LUMIX GH5 / LUMIX GH6 / LUMIX S1H / LUMIX S1R / LUMIX S1 / LUMIX S5 / LUMIX S5 II DJI RS Series Gimbals

Physical

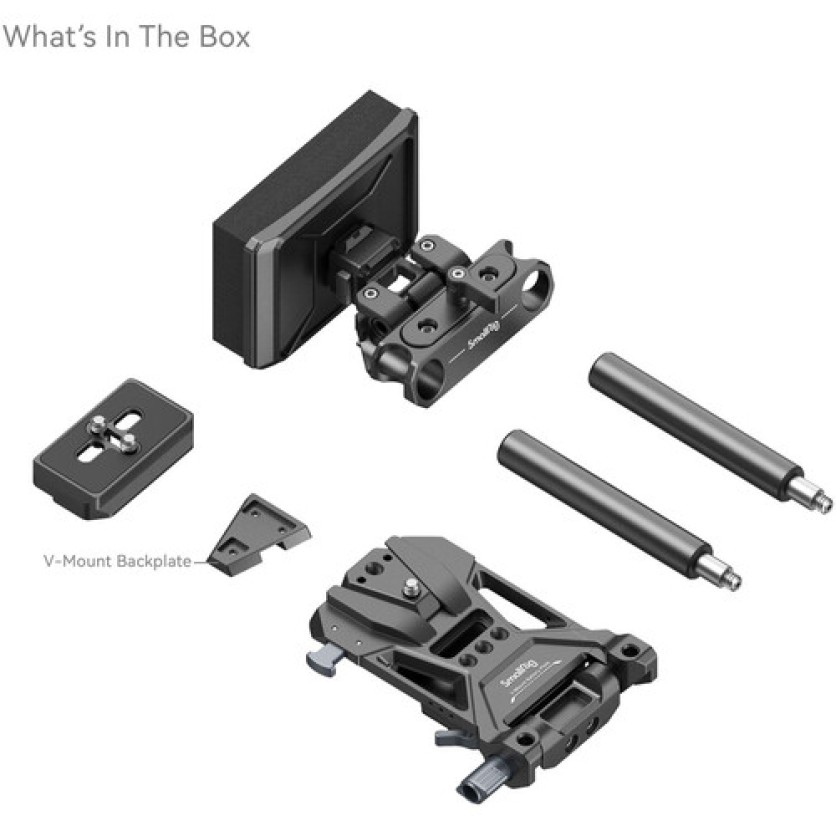

Mounting	2x 15mm Rod 1x V-Mount Battery Plate 1x V-Lock Accessory Wedge 1x V-Mount Battery Wedge 1x Arca-Swiss 1x 3/8"-16 Thread Multiple 1/4"-20 Threads
Load Capacity	11 lb / 5 kg
Color	Black
Material of Construction	Aluminum Alloy, Stainless Steel, EPDM
Environmental Resistance	No

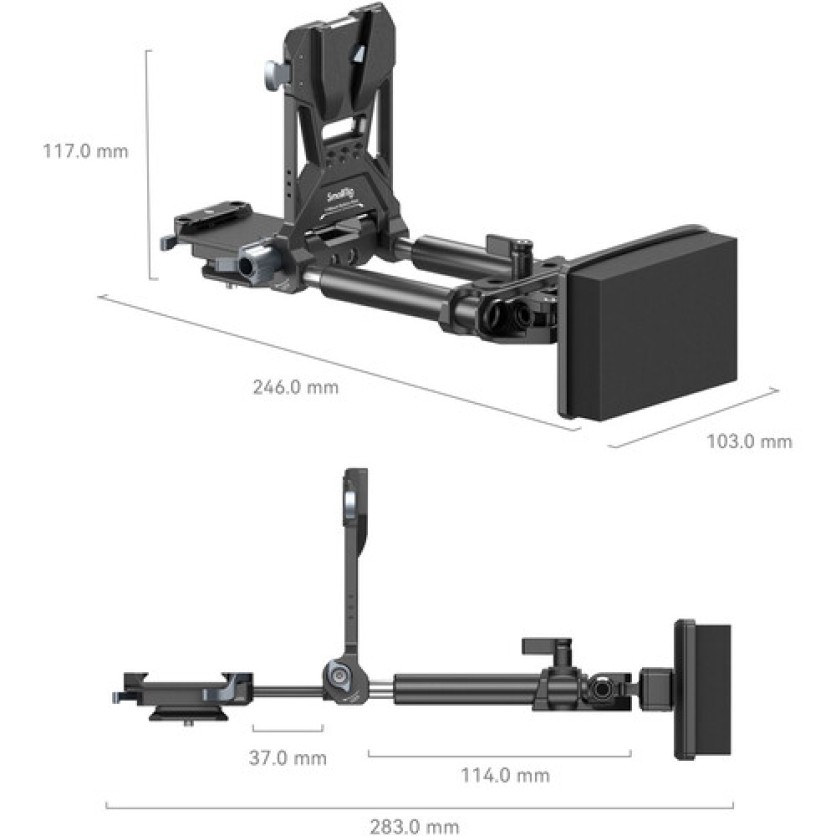

Dimensions	9.7 x 5.5 x 3.7" / 245.5 x 140 x 95 mm
Weight	16.8 oz / 475 g

SmallRig Advanced V-Mount Battery Plate Kit Mounting System 4063B

4063B
