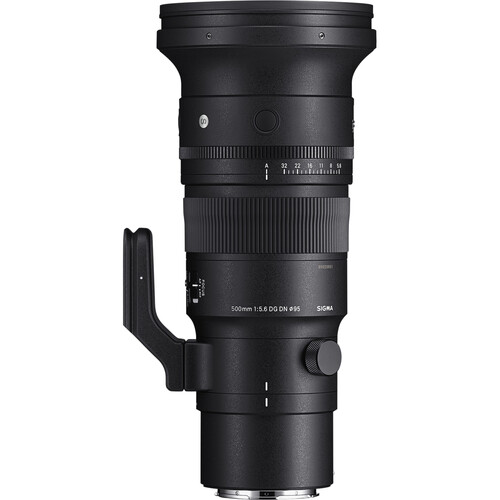

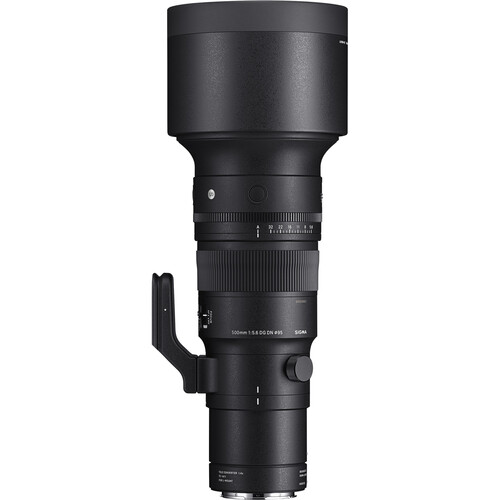

Sigma 500mm f/5.6 DG DN OS Sports Lens (Leica L)

A compact and lightweight ultra-telephoto prime, the Leica L-mount Sigma 500mm f/5.6 DG DN OS Sports Lens leverages a robust construction and advances in optical design and optical stabilization to deliver professional-grade performance when used handheld and in the most challenging environments. The lens' quiet and precise high-speed autofocus complements its optical performance, allowing shooters to freeze action and produce compelling images in sports, wildlife, and aviation applications.

Body and Optical Design

Sigma's improved optical design situates exclusive low-dispersion convex elements at the front of the lens to achieve both a compact and lightweight lens construction and high optical performance with excellent aberration correction. With 20 lens elements in total arranged in 14 groups, including three FLD elements and two SLD elements, the lens effectively prevents flare and ghosting and promotes image clarity. The lens body is built from Thermally Stable Composite and magnesium for a robust, dust- and splash-resistant construction. The front element also sports a water- and oil-repellent coating to protect the lens from debris.

OS2 Optical Stabilizer Algorithm

Sigma's OS2 optical stabilization algorithm provides up to 5 stops of image stabilization. Combined with the compact form factor, the OS makes the lens well-suited for handheld usage and gives users the luxury of shooting at slower shutter speeds without sacrificing image sharpness. Two stabilization modes are available, Mode 1 for general shooting and Mode 2, which features Sigma's Intelligent OS algorithm. Ideal for panning shots and sports capturing, the Intelligent OS provides effective image stabilization even when the camera is moved vertically or diagonally irrespective of the horizontal and vertical orientation.

HLA Autofocus System

The HLA (High-response Linear Actuator) focusing motor introduces unprecedented speed, precision, and silence into the Sigma autofocus system. The HLA also offers improved focus following performance for sports photography and other subjects in motion such as cars, planes, or birds in flight, ensuring that the decisive moment is not missed.

Additional Benefits

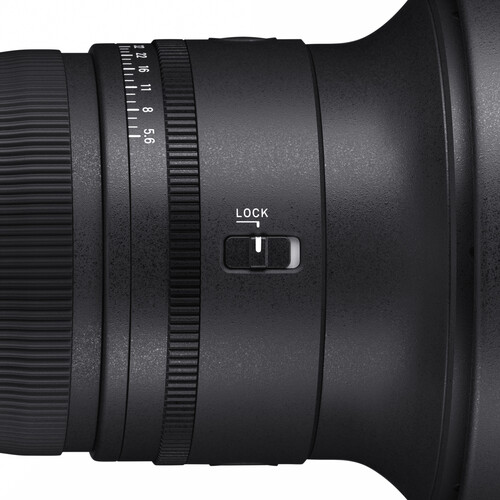

Aperture ring with click and lock switches

Tripod socket to distribute weight evenly

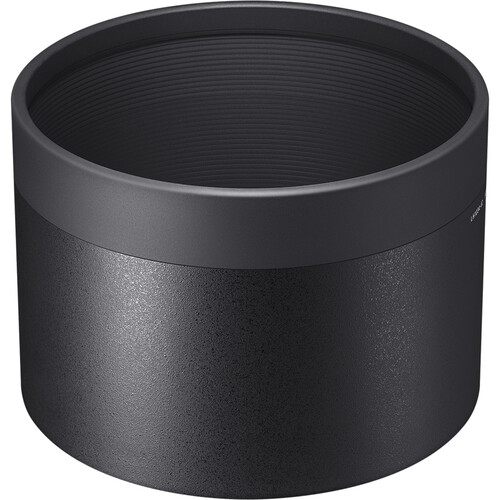

Carbon fiber-reinforced plastic lens hood

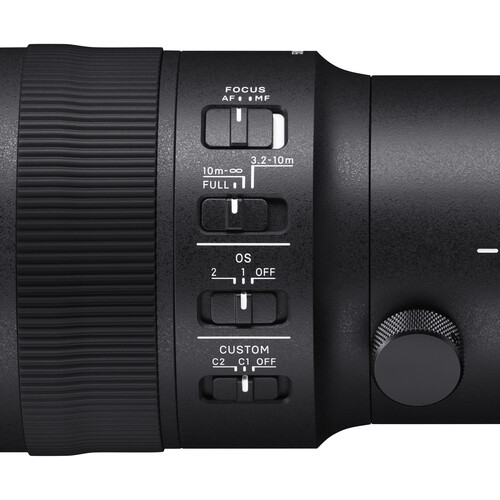

Custom buttons and switches: three AFL buttons, focus mode switch, focus limiter switch, OS switch, custom mode switch, aperture ring click switch

• Maximum Aperture
• f/5.6
• Minimum Aperture
• f/32
• Lens Mount
• Leica L
• Lens Format Coverage
• Full-Frame
• Angle of View
• 5°
• Minimum Focus Distance
• 10.5' / 320 cm
• Maximum Magnification
• 0.17x
• Macro Reproduction Ratio
• 1:6
• Optical Design
• 20 Elements in 14 Groups
• Diaphragm Blades
• 11
• Focus Type
• Autofocus
• Image Stabilization
• Yes
• Tripod Collar
• Removable
• Filter Size
• 95 mm (Front)
• Dimensions (ø x L)
• 4.2 x 9.2" / 107.6 x 234.6 mm
• Weight
• 48.3 oz / 1.4 kg
