FeelWorld S55E 5.5" 4K HDMI Onboard Monitor 500 nits

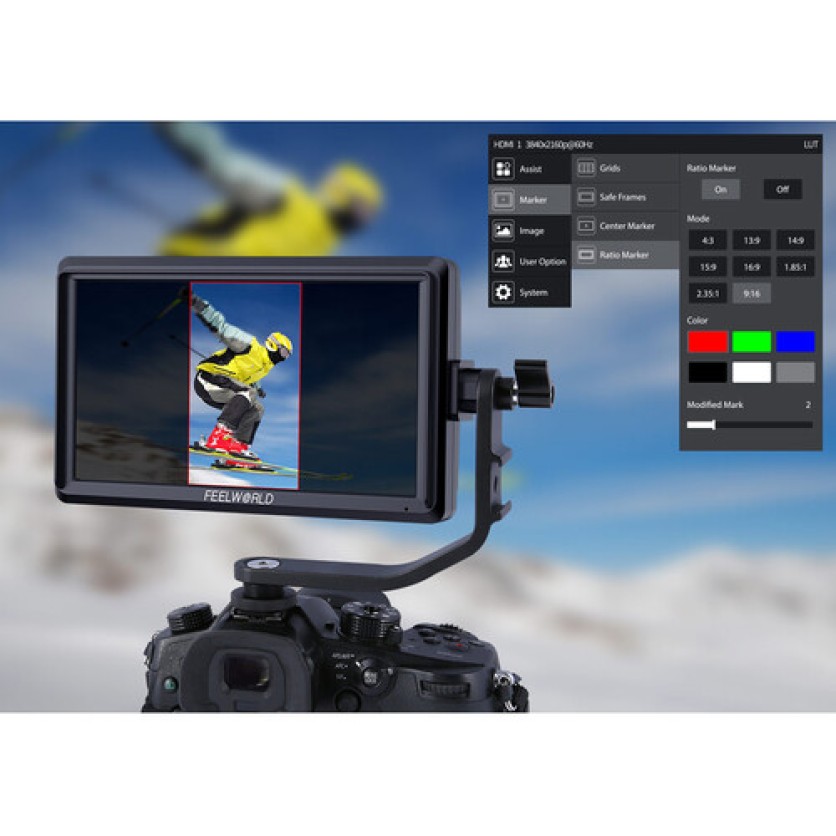

This 5.5" 4K HDMI monitor is perfect for gimbal and mirrorless camera setups due to its lightweight build. It offers excellent viewing with 500 nits brightness and 1000:1 contrast. The monitor supports DCI 4K60, HDR, and 3D LUTs, enhancing your footage. Versatile power options include compatibility with Sony L-series or LP-E6 batteries. It features various imaging tools like waveform and histogram, and a 9:16 marker for social media framing. The tilt arm and customizable shortcuts enhance ease of use.
Features
Portability and Lightweight Design
The super lightweight design of the FeelWorld S55E makes it perfect for use with gimbals and mirrorless cameras, ensuring easy portability.
High-Quality Display

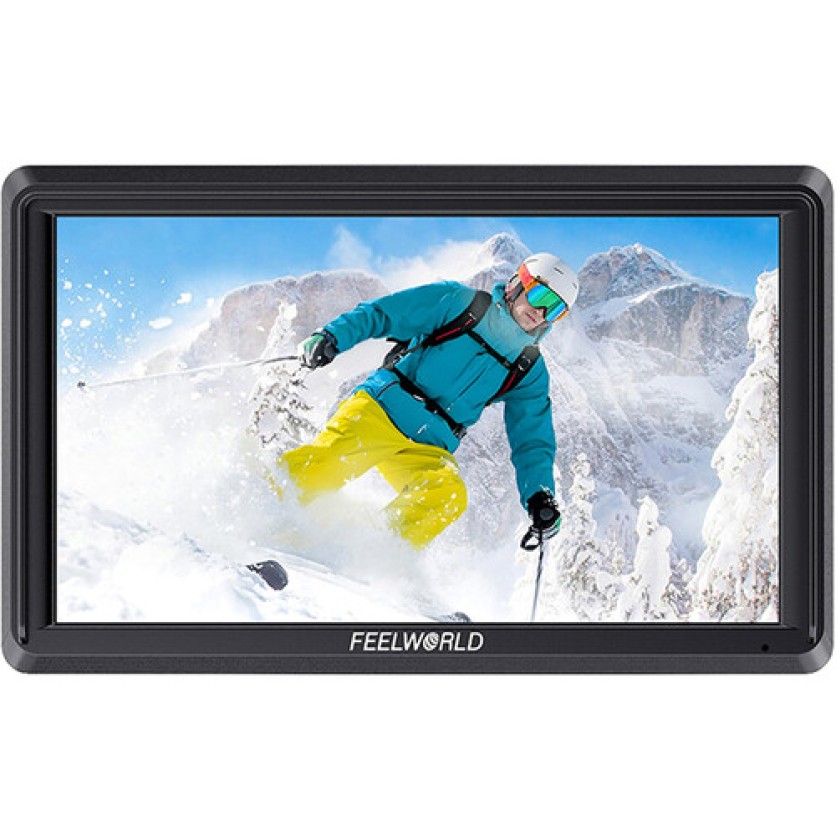

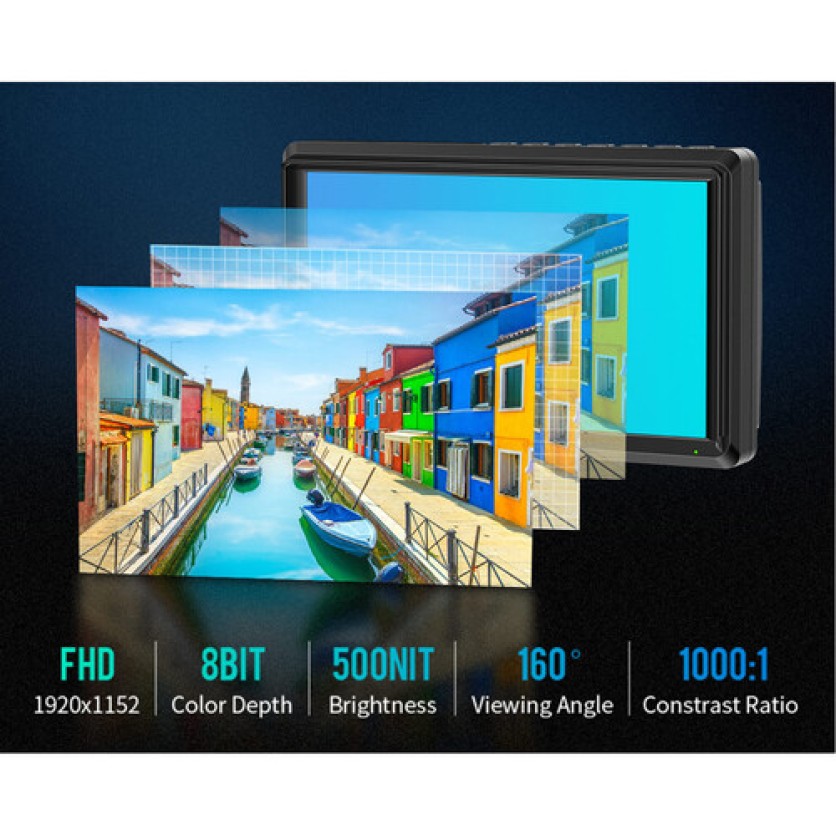

Enjoy clear viewing with its 5.5" screen, 1920 x 1152 resolution, 500 nits brightness, and 1000:1 contrast ratio.
Advanced Imaging Tools

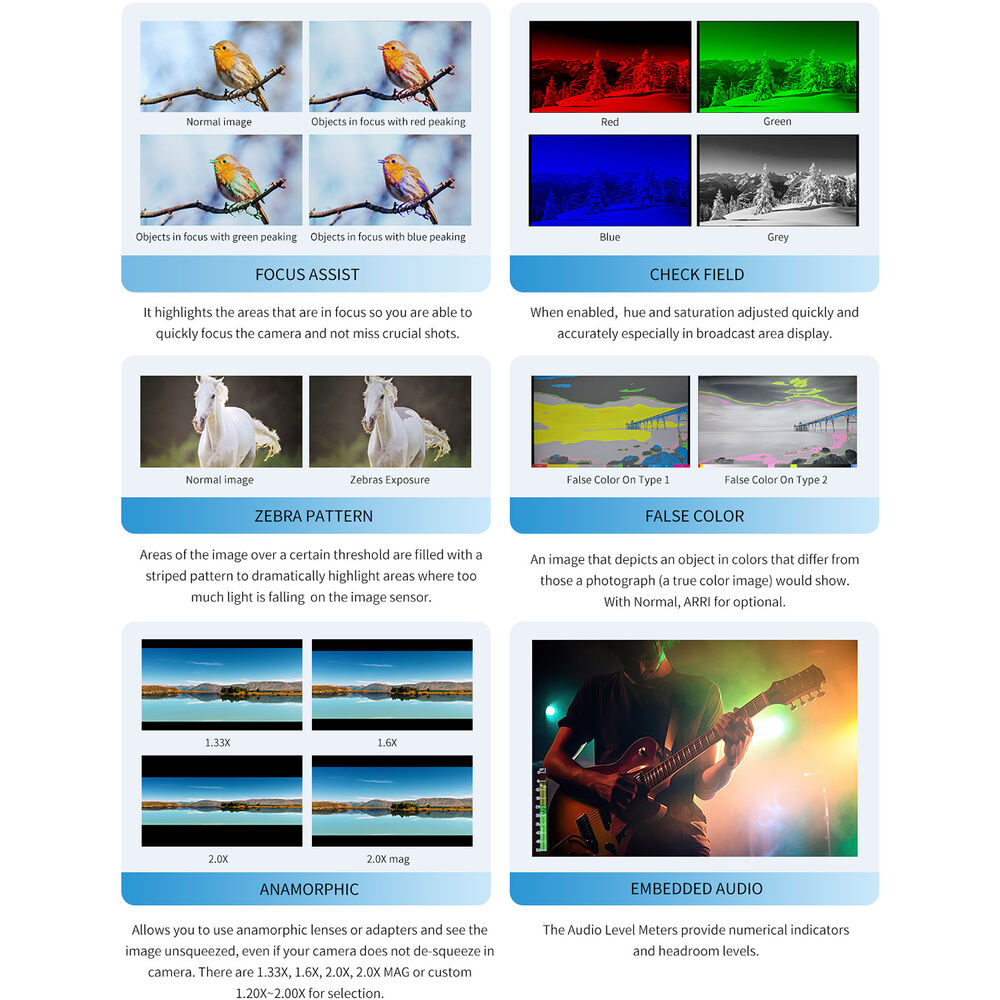

Features like waveform, vectorscope, and histogram provide professional-grade imaging support, enhancing your shooting capabilities.
Flexible Power Options
Multiple power options include a 12 VDC input and support for Sony L-series or LP-E6 batteries, offering flexibility in power management.
Convenient Functionality
Customizable shortcut buttons and a user-friendly menu system make it easy to access frequently used functions.
Versatile Mounting

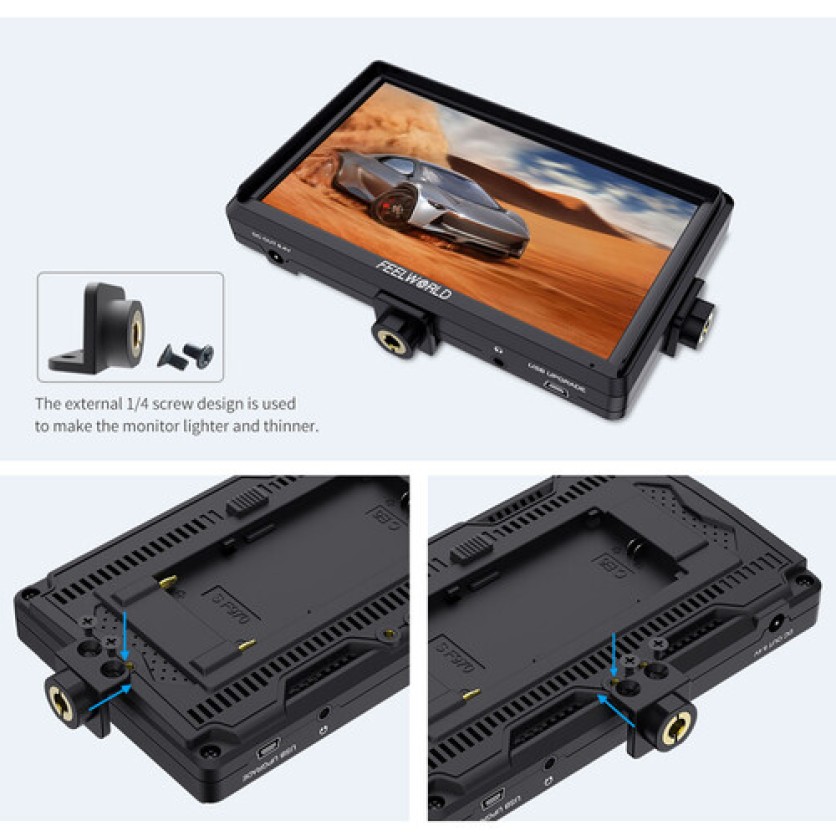

Includes a tilt arm and 1/4"-20 thread for convenient attachment, enhancing usability across different setups.
Specifications
Display
| Panel Type | IPS-Type LCD |
|---|---|
| Display Size | 5.5" / 14.0 cm |
| Native Resolution | 1920 x 1152 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 160° (80/80) Vertical: 160° (80/80) |
| Touchscreen | Yes |
| Maximum Brightness | 500 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| HDR Support | Yes |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Check Field, False Color, Focus Peaking, Histogram, Image Flip, Image Freeze, Overscan, Pixel-to-Pixel Zoom, Screen Markers, Vectorscope, Zebra |
Inputs/Outputs

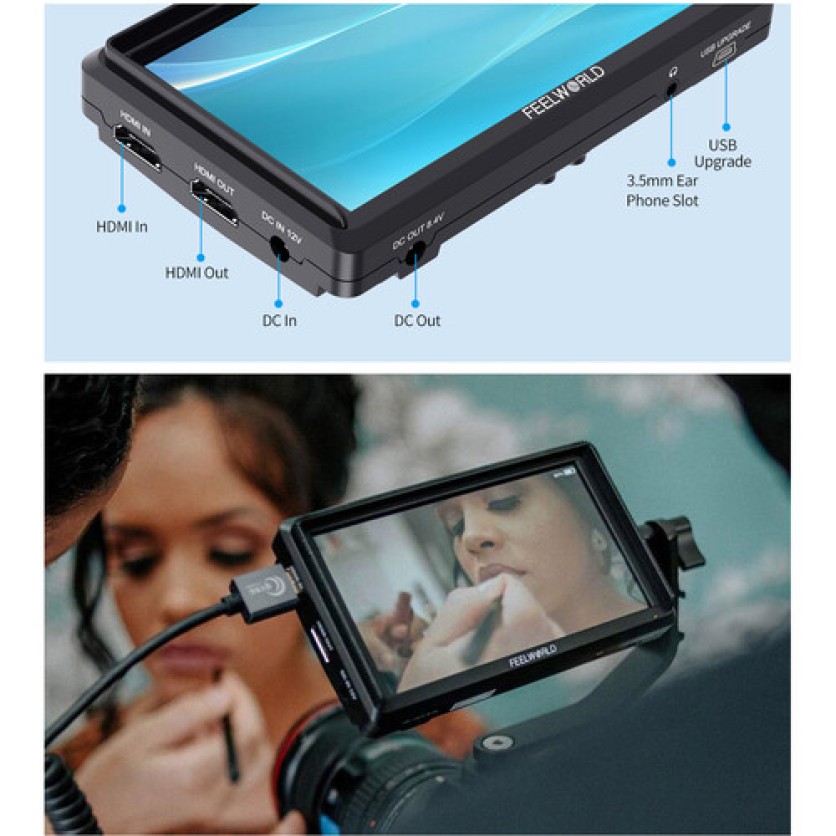

| Video I/O | 1x HDMI Input 1x HDMI Output |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel 2.1 mm (12 VDC) Input 1x Barrel (8 VDC) Output |
| Other I/O | 1x Mini-USB (Firmware/LUT Upload) |
| Media/Memory Card Slot | No |
Wireless
| Wi-Fi | No |
|---|---|
| Bluetooth | No |
| Mobile App Compatible | No |
Format Support
| Video Format | HDMI |
|---|---|
| DCI 4K | 60/50/30/29.97/25/24/23.98 |
| UHD 4K | 60/50/30/29.97/25/24/23.98 |
| 1080p | 60/59.94/50/30/29.97/25/24/23.98 |
| 1080i | 60/59.94/50 |
| 1080PsF | 24/23.98 |
| 720p | 60/59.94/50/30/29.97/25/24/23.98 |
| 576p | |
| 576i | |
| 480p | |
| 480i |
Power
| Input Power | 7 to 24 VDC |
|---|---|
| Battery | 1x L-Series/LP-E6 Combination Mount on Fixed Plate |
| Power Consumption | 9 W |
Mounting
| Tripod/Accessory Mounting | Right |
|---|---|
| 1x 1/4"-20 Female |
General
| Environmental Resistance | No |
|---|---|
| Operating Conditions | 12 to 87°F / -20 to 55°C |
| Storage Conditions | -22 to 149°F / -30 to 65°C |

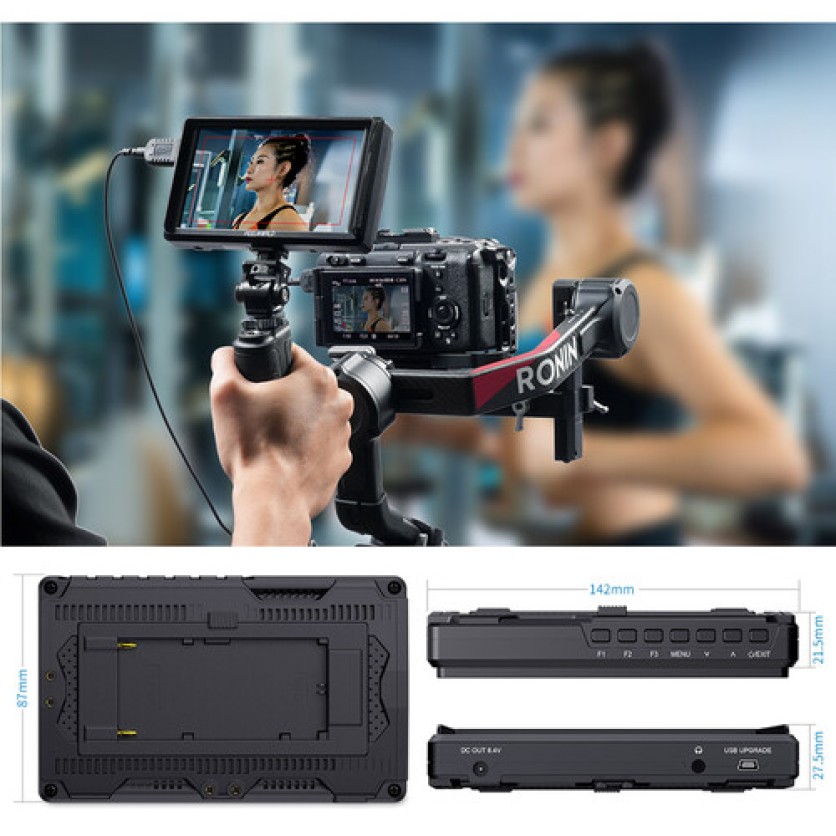

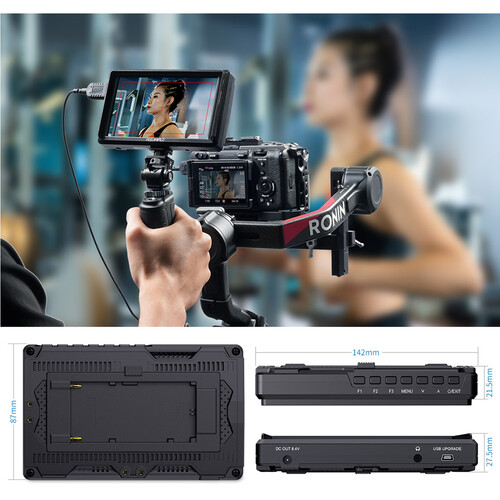

| Dimensions | 5.6 x 3.4 x 1.1" / 142 x 87.2 x 27.5 mm |
| Weight | 0.4 lb / 175.00 g |
