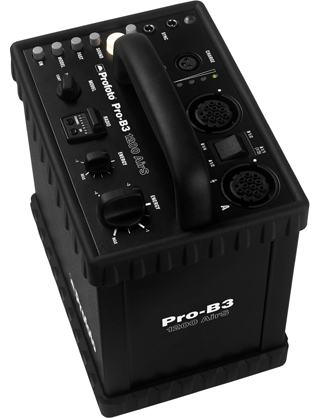

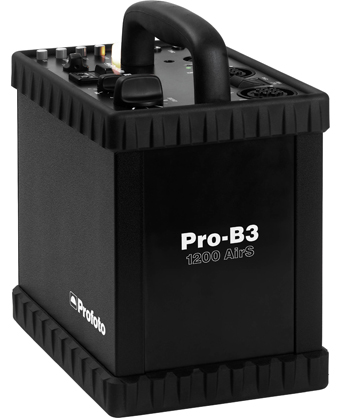

PROFOTO PRO-B3 12 AirS BATTERY PACK

Fastest battery generator on the market.

It’s superior light anywhere.

Features

• Fast recycling times: 0.06-1.8 s

• Short ?ash duration: 1/2200-1/7400 s with standard Pro-B head and ProHead

• High capacity: 300 flashes at full power and more than 30.000 flashes at lowest power

• Low weight: Just 8,8 kg (19 lb) incl. battery

• Compact and handy: (w) 17 x (d) 24 x (h) 28 cm (6.7x9.4x11 in) incl. handle

• Wide power range: 8 f-stops (1200-9 Ws)

• Integrated radio sync: Profoto AirS module with up to 300 m operating range, sync times down to 1/1500 s. The antenna is integrated in the module

• Long battery life: Advanced LiFe battery with 1200 charge cycles

• Improved lamp sockets: Safe and secure connection, allowing “hot-plugging”

• Bright model light: 250 W model light with standard Pro-Head’s even in battery operation

Read the Frequently Asked Questions here

The Profoto Pro-B3 1200 AirS is the fastest 1200Ws pack on the market, with a recycling time between 0.06 to 1.8 s, giving up to 16 flashes/sec.

Plus, the very short f ash durations of the Pro-B3 make it easy to freeze movement. The Pro-B3 AirS can be used while recharging.

Smallest and lightest

Pro-B3 1200 AirS is one of the smallest and lightest 1200Ws battery generators on the market and measures only

(w) 17 x (d) 24 x (h) 28 cm (6.7x9.4x11 in) incl. handle.

The weight of the complete unit with battery is only 8,8 kg (19 lb). The generator offers and outstanding reliability and is easy to use.

Licenced to travel

The battery is licensed to travel and has been tested and certi?ed according to UN manual of Test & Criteria, Part III, Sub-section 38.3. Making the battery f ight approved all over the world.

Product No.

900980 Pro-B3 1200 AirS LiFe

900996 Pro-B3 1200 AirS (344MHz) LiFe (integrated Pocket Wizard)

900997 Pro-B3 1200 AirS (433MHz) LiFe (integrated Pocket Wizard)

Delivered with

Radio Receiver

Syncro cable

Power cable

Charger (2A)

• Specifications – Pro-B3 1200 AirS
• Energy 1200 Ws
• Recycling 0.06-1.8 s @ full (0,9 s at 600 Ws)
• Fast/Slow Recycle Switch Yes
• Flash Duration 1/2200 – 1/7400 s (with standard Pro-Head and Pro-B Head)
• NOTE: ProTwin and two Pro-B3 generators on the same equivalent power
• give half the recycling time and shorter fash duration.
• Flash Capacity 300 @ full > 30 000 @ min
• Modeling Lamps Total W/Pack Up to 250W continuous or time controlled (max 60 s)
• Modeling Lamps Max W/Head 250 W
• Modeling Light Modes Off / Max / Continuous / Timer
• Energy Control f-stop Range 8
• Energy Control Increments 1/10 or 1/2 f-stop adjustments
• Energy Control W/s Range 9–1200
• Energy Precisions 1/100 f-stop flash to flash
• Energy Distribution Asymmetrical/Symmetrical
• Asymmetry Max f-stop Range 2
• Asymmetrical/Symmetrical 0utput Yes
• Flash Duration Minimum 1/7400
• Flash Duration Maximum 1/2200
• Flash Duration Twin 1/3300 **
• Recycling BATTERY: 0.04–1.8
• 230 V Twin + 2 Genenerators @ 1/2: 0.9 s ***
• Outputf-stop at 2 m @ head settings Magnum @ 8: 90.3
• Zoom @ 4: 45.3
• Umbrella @ 7: 22.3
• Magnum + Twin & 2 Generators: 128.3 *
• Battery type 13.2 V, 11.5 Ah, LiFePo4
• Battery Charging Time 5 h with Profoto Charger 2A
• 2.5 h with Profoto Universal Power Adapter UPA
• Battery Life 1 200 charge cycles 80% capacity left
• Lamp Head Socket(s) 2
• Sync Socket(s) 2
• Wireless Radio AirS: 8 Channels, International
• Pocket Wizard : 32 channel / 4 zone for remote operation
• Wireless Radio Range Up to 300m AirS
• Up to 100 m Pocket Wizard
• Fan Cooled Yes
• Charger Auto Multi-Voltage Yes. Charge all over the world automatically.
• Battery Fuse 40 A x3 (total 3 fuses @ 40A each)
• Photo/IR-cell Yes
• Photocell Switch On/Off Yes
• Battery Indicator(s) Yes
• Audible Signal On/Off Yes
• Sync Voltage Compliant to ISO 10330 Standard
• Compatible Heads
• Pro-B Head Yes
• ProHead Yes
• ProTwin Yes
• ProRing Yes
• ProRing2 Yes
• D4 Head N/A
• D4 Twin N/A
• D4 Ring N/A
• AcuteB Head N/A
• Acute Head N/A
• Acute Twin N/A
• Acute Ring N/A
• Spotlights Yes
• Striplights Yes
• Measurements
• Size (w) 17 cm x (d) 24 cm x (h) 28 cm (6.7 x 9.4 x 11 in) incl. handle
• Weight 6.4 kg (14.1 lbs), exclusive of battery
• 8.8 kg (19.0 lbs), including battery
• * To get twice the power by using two generators
• ** To get half the duration by using one or two generators.
• *** To get half recycling and duration by using half power with two generators.
