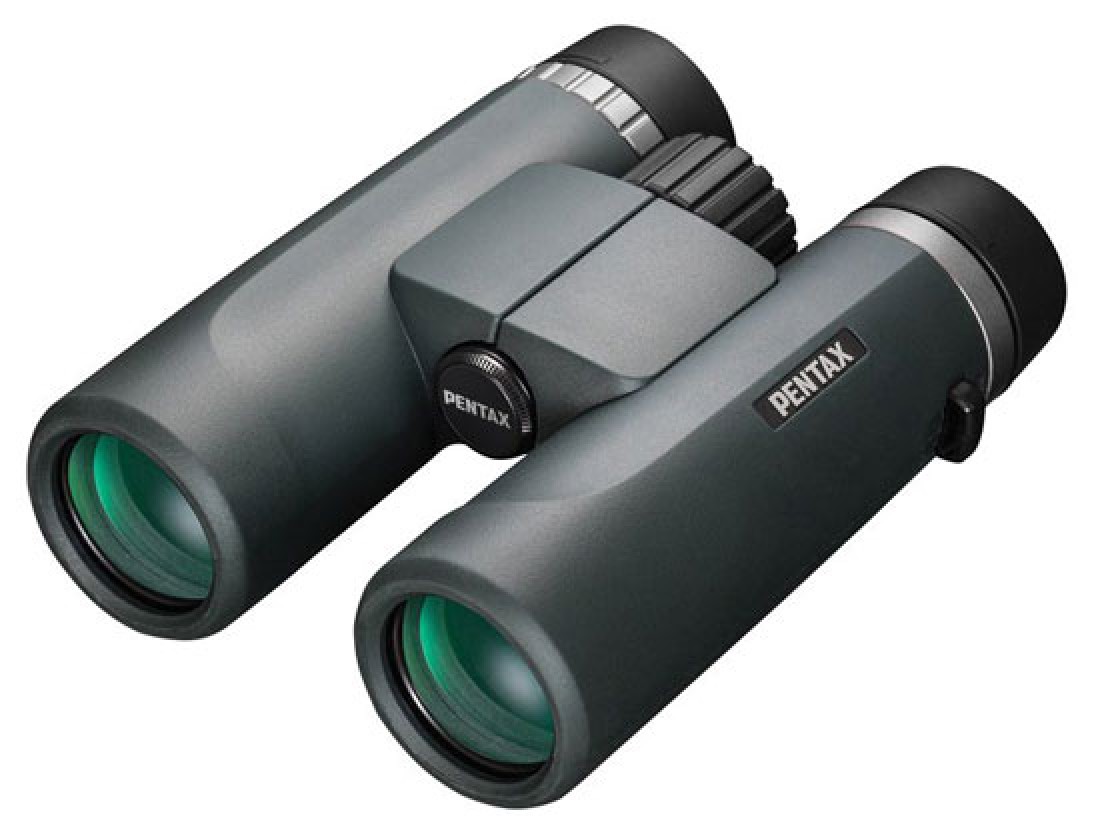

Designed for the nature-enthusiast who wants to pack light without sacrificing image quality, the Pentax 8x36 A-Series AD WP Compact Binocular delivers bright clear images while weighing in at just 22.5 ounces. The BAK4 roof prisms are phase-corrected to improve image contrast and enhance colour rendition. All of the optics are anti-reflection fully multicoated to maximise light transmission to produce the brightest views possible.
In order to cut weight, the housing is made of corrosion and impact-resistant fibreglass reinforced polycarbonate polymer. The material is also temperature-resistant allowing for its use in extreme climates while reducing expansion and contraction wide temperature swings can cause which can make the optical components move out of collimation over time. Its optical tubes are nitrogen-filled and O-ring sealed so they can are submersible to 3.3', as well as fogproof in all weather conditions.
Key Features
Optical Performance
8x magnification
36mm objective lenses
BAK4 roof prisms
Phase corrected prism coatings enhance contrast and improve colour rendition
Anti-reflection fully multicoated optics
341.5' field of view at 1000 yards
52° angle of view
Use and Handling
Closed bridge configuration
Knurled centre focusing wheel
Twist-up eyecups for use with or without eye wear
16.0mm eye relief, 4.5mm exit pupil
Tripod mountable with optional adapter
Construction Details
Lightweight fibreglass reinforced polycarbonate housing
Housing is corrosion, temperature and impact-resistant
Nitrogen-filled for fogproof performance, submersible to 3.3' (1m)
Rubberised armouring protects against impacts and provides slip-resistant grip
Inner focusing mechanism provides smooth focus while preserving waterproof seals
Specifications
Prism Type ... Roof
Magnification ... 8x
Objective Lens Diameter ... 36mm
Angle of View ... 6.5° (actual)
Field-of-View ... 341.5' @ 1000 yd / 113.38 m @ 1000 m
Minimum Focus Distance ... 9.84' / 3 m
Exit Pupil Diameter ... 4.5 mm
Eye Relief ... 16.0 mm
Interpupillary Adjustment ... Not Specified By Manufacturer
Dioptric Correction ... Not Specified By Manufacturer
Focus Type ... Centre
Tripod Mount ... Yes (Adapter Optional)
Dimensions ... 6.1 x 5.1 x 2.1" / 15.49 x 12.95 x 5.33 cm
Weight ... 22.5 oz / 638 g
