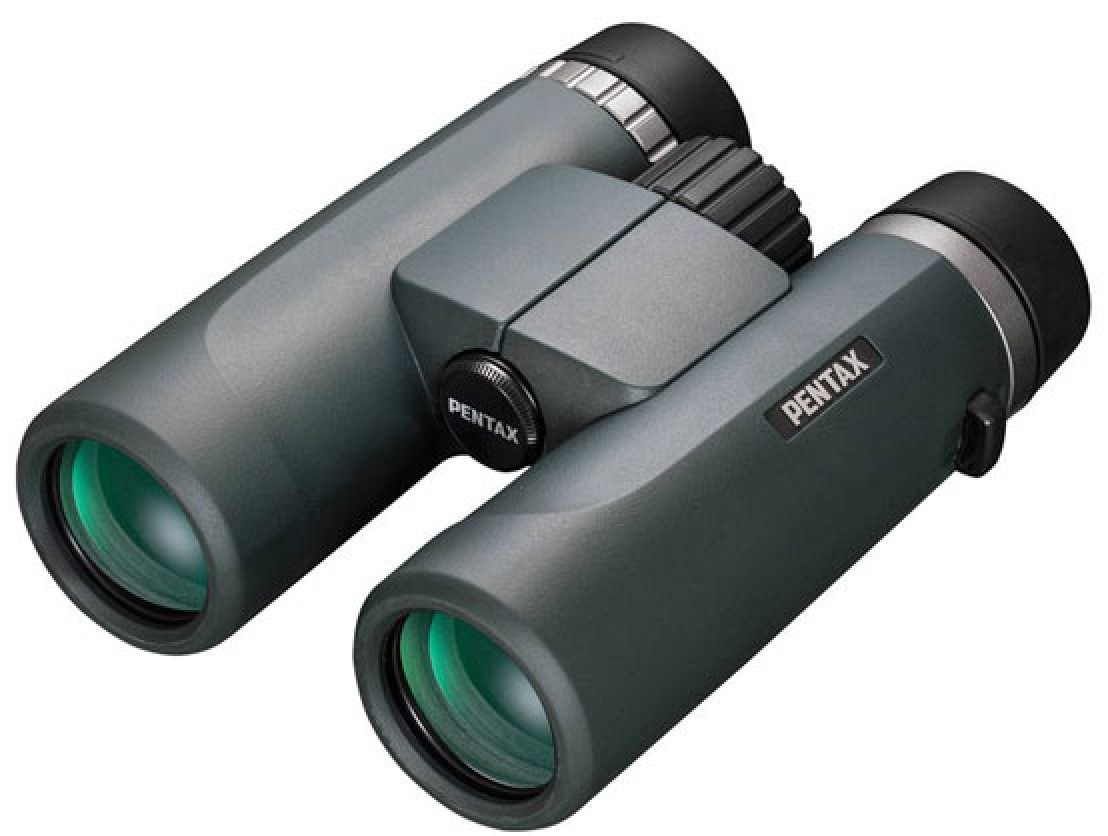

Pentax 10x36 AD WP Compact Binoculars

Designed for the nature-enthusiast who wants to pack light without sacrificing image quality, the Pentax 10x36 A-Series AD WP Compact Binocular delivers bright clear images while weighing in at just 22.5 ounces. The BAK4 roof prisms are phase-corrected to improve image contrast and enhance colour rendition. All of the optics are anti-reflection fully multicoated to maximise light transmission to produce the brightest views possible.

In order to cut weight, the housing is made of corrosion and impact-resistant fibreglass reinforced polycarbonate polymer. The material is also temperature-resistant allowing for its use in extreme climates while reducing expansion and contraction wide temperature swings can cause which can make the optical components move out of collimation over time. Its optical tubes are nitrogen-filled and O-ring sealed so they can are submersible to 3.3', as well as fogproof in all weather conditions.

Key Features

Optical Performance

10x magnification

36mm objective lenses

BAK4 roof prisms

Phase corrected prism coatings enhance contrast and improve colour rendition

Anti-reflection fully multicoated optics

288.8' field of view at 1000 yards

55° angle of view

Use and Handling

Closed bridge configuration

Knurled centre focusing wheel

Twist-up eyecups for use with or without eye wear

17.5mm eye relief, 3.6mm exit pupil

Tripod mountable with optional adapter

Construction Details

Lightweight fibreglass reinforced polycarbonate housing

Housing is corrosion, temperature and impact-resistant

Nitrogen-filled for fogproof performance, submersible to 3.3' (1m)

Rubberised armouring protects against impacts and provides slip-resistant grip

Inner focusing mechanism provides smooth focus while preserving waterproof seals

• Specifications
• Prism Type ... Roof
• Magnification ... 10x
• Objective Lens Diameter ... 36mm
• Angle of View ... 5.5° (actual)
• Field-of-View ... 288.8' @ 1000 yd / 95.88 m @ 1000 m
• Minimum Focus Distance ... 9.84' / 3 m
• Exit Pupil Diameter ... 3.6 mm
• Eye Relief ... 17.5 mm
• Interpupillary Adjustment ... Not Specified By Manufacturer
• Dioptric Correction ... Not Specified By Manufacturer
• Focus Type ... Centre
• Tripod Mount ... Yes (Adapter Optional)
• Dimensions ... 6.1 x 5.1 x 2.1" / 15.49 x 12.95 x 5.33 cm
• Weight ... 22.5 oz / 638 g
